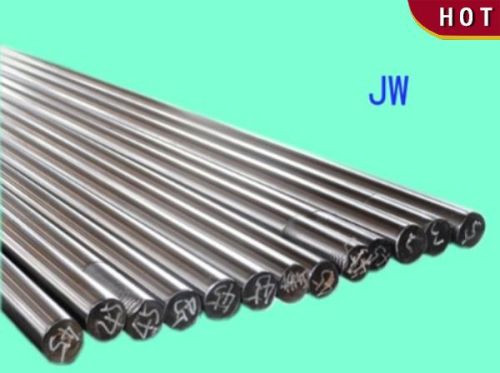

Hard Chrome Plated Bar/piston Rod, Brand Name : JW

₹ 1.17 Lakh / 3000 3000 Ton

MOQ1 Ton
Brand NameJW
MaterialCK45,ST52,20MnV6
CHROME THICKNESS20 to 50 micron
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

we offer Hard Chrome Plated Bar/piston Rod. Chrome rod Detailed Product Description 1.material:CK45,ST52,20MnV6,42CrMo4,40Cr, stainless steel, alloy steel and special steel. 2.Size range: outside....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1996

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

we offer Hard Chrome Plated Bar/piston Rod.
Chrome rod
Detailed Product Description
1.material:CK45,ST52,20MnV6,42CrMo4,40Cr, stainless steel, alloy steel and special steel.
2.Size range: outside diameter from 12 to 500mm Max length 16meters
3.chrome plated
4.advanced inspection
Detailed Description
1.CHEMICAL COMPOSITION
2. SUPPLY CONDITION
chrome plated
3. CHROME THICKNESS
20 to 50 micron
4. SURFACE ROUGHNESS
0.2-0.4um
5.PUTSIDE DIAMETER TOLERANCES: ISO f7
6.OVALITY
Half of the tolerance ISO f7
7. STRAIGHTNESS
â�¤0.2MM/M
8. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
9. PACKING
Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden cases.
10. CERTIFICATE
All certificate related with material heat treatment and plating is required

Additional Information

Payment Terms L/CT/T
Port of DispatchSHANGHAI
Packaging DetailsAnti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden cases.
Delivery Time30 DAYS
