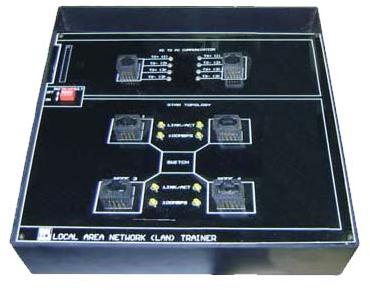

Hardware & Network Trainer (VPL-LAN-PS)

This trainer kit helps students to understand about basic networking concepts and hardware connection used. It helps in studying of Peer-To-Pear and Star Topologies. Also helps to understand various networking protocols

• PC to PC communication with IEEE 802.3
• Design of Star topology using 100Base-Tx
• Creation of cables for network connections
• Network design using RJ45 connectors
• Data Encryption and Decryption
• Various LAN Protocols
• Data rate up to 100Mbps
• Variable packet size
• Variable packet delay
• Error generation (Manual and Auto)
• Real time graphical representation of entire transmission & reception
• User friendly software
• Switch faults in both hardware & software
• Exhaustive course material & references

TECHNICAL SPECIFICATIONS

• PC to PC using RJ-45 Connector
• Star topology using RJ45 Connector
• 2 Nodes

Experiments that can be performed

• Study & implementation of cable designs in networking
• Implementation of PC to PC with IEEE 802.3
• Implementation of Star topology using 100BaseTx
• Study of protocols
• Study of flow control
• Stop-N-wait
• Go back to N
• Selective repeat
