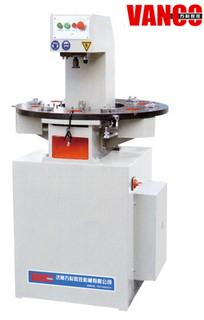

Contact SupplierWe are offering hardware punching machine for aluminum window and door (including mould) ly-16
features:
1. Machine type is introduced from german, four or five processing position with flat and smooth punching surface, high efficiency.
2. Used for hardware slot punching and processing of side-hung aluminum window and door. (just 20mm european standard c).
3. Pneumatic foot operated valve makes stable working.
4. Equipped with four or five processing position, it can punch the handle slot, sharp-angled cutting and friction hinge slot.
Technical parameter:
working air pressure: 0.5~0.8mpa
air consumption: 0.2m3min
mould size: 200mm*250mm
nominal press pressure: 30kn
punching travel: 17mm
dimension: 800mm*600mm*1300mm (l*w*h)
weight: 180kg
