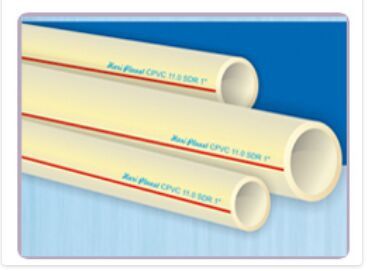

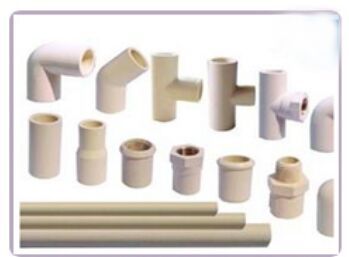

Hari Plaast CPVC Pipes & Fittings are made from the specialty thermoplastic known as post Chlorinated Ploy Vinyl Chloride and met all the requirments of ASTM D 2846 and IS 15778:2007.The pipes and fittings are available in complete range from 1/2″ to 2″ sizes.The pipes are available in SDR 11 and SDR 13.5 pressure class and fittings are available in SDR 11 pressure class.
FIELD OF APPLICATIONS
Hot and Cold water distribution in residential,commercial and public projects,high and low rise buildings,corporate houses and academic institutes,solar heater application etc.
Previous
Next
ADVANTAGES
Excellent resistance to corrosion and chemical attacks.
Lowest bacterial growth.
Tough and rigid material.
No Scale, pit or leach formation
Unaffected by chlorine in the water
Hot and cold water compatible
Low thermal expansion
Fire resistance
Simple and leak proof joints
Maintenance free
Cost effective
Approved World wide.
| Nominal Dia (mm) | Outer Diameter (mm) | SDR 11 | SDR 13.5 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Wall Thickness (mm) | Working Pr. Kgf/cm2 at | Wall Thickness
(mm) | Working Pr. Kgf/cm2 at | |||||||
| Min | Max | Min | Max | 23’c | 82’c | Min | Max | 23’c | 82’c | |
| 15 | 15.8 | 16.0 | 1.7 | 2.2 | 28.10 | 7.0 | 1.4 | 1.9 | 22.50 | 5.6 |
| 20 | 22.1 | 22.3 | 2.0 | 2.5 | 28.10 | 7.0 | 1.7 | 2.2 | 22.50 | 5.6 |
| 25 | 28.5 | 28.7 | 2.6 | 3.1 | 28.10 | 7.0 | 2.1 | 2.6 | 22.50 | 5.6 |
| 32 | 34.8 | 35.0 | 3.2 | 3.7 | 28.10 | 7.0 | 2.6 | 3.1 | 22.50 | 5.6 |
| 40 | 42.1 | 41.4 | 3.8 | 4.3 | 28.10 | 7.0 | 3.1 | 3.6 | 22.50 | 5.6 |
| 50 | 53.9 | 54.1 | 4.9 | 5.5 | 28.10 | 7.0 | 4.0 | 4.0 | 22.50 | 5.6 |
| No.of fittings per Ltr. | 25 | 20 | 25 | 32 | 40 | 50 |
| Pipe Size (mm) | 1200 | 750 | 500 | 450 | 325 | 225 |
| Chemicals | Concentration | 200c | 600c | 800 c |
|---|---|---|---|---|
| Hydrochloric Acid | 20% | Excellent | Excellent | Good |
| Hydrochloric Acid | 35% | Excellent | Excellent | Good |
| Nitic Acid | 40% | Excellent | Fair | Fair |
| Nitic Acid | 60% | Good | Fair | Not good |
| Sulphuric Acid | 30% | Excellent | Good | Good |
| Sulphuric Acid | 50% | Excellent | Good | Not good |
| Sulphuric Acid | 100% | Good | Not good | Not good |
| Acetic Acid | 60% | Excellent | Fair | Fair |
| Acetic Acid | 95% | Good | Not good | Not good |
| Carbonic Acid | 100% | Excellent | Fair | Fair |
| Caustic Soda | 40% | Excellent | Excellent | Good |
| Caustic Soda | 60% | Excellent | Excellent | Good |
| Sodium Chloride | Saturated | Excellent | Excellent | Good |
| Sodium Carbonate | Saturated | Excellent | Excellent | Good |
| Sodium Sulphates | Saturated | Excellent | Excellent | Good |
| Hydrogen Peroxide | <30% | Excellent | Excellent | Not good |
| Ammonium Carbonate | Saturated | Excellent | Excellent | Good |
| Methanol | 100% | Excellent | Fair | Not available |
| Ethanol | 100% | Excellent | Good | Not available |
| Isopropanol | 100% | Excellent | Good | Good |
| Butanol | 100% | Excellent | Good | Fair |
| Glycerin | 100% | Excellent | Excellent | Excellent |
| Acetone | 100% | Not available | Not available | Not available |
| Methyl Ethyl | 100% | Not available | Not available | Not available |
| Ketone | 100% | Not available | Not available | Not available |
