Research and developments have given birth to a new pump i.e. ”Direct Action Hand Pump” and is covered under IS:14106:1996. It is designed to draw water from bore wells with static water level up to 15 meters. Without any lever action, pumping efforts is applied directly on handle for which it is named as “Direct Action” hand pump. They are cost effective than the deep well hand pumps for medium lifts and are safer bacteriological contamination and corrosion problems.
The Major Components of the pump are:
Head and Handle assembly.
Pedestal assembly.
Riser pipe 3M long (Top one is separate from other pipes)
Hollow Pvc connecting (Pump) rods, 3M long (makes the pumping action easy due to buoyancy effect)
Top pump rod 1 M long (special attachment for connecting with handle)
Pistion Rod 1 M long (pistion assembly is attached to this rod)
Cylinder pipe along with foot valve arrangement.
Upper casing (80 mm dia), lower casing (40mm dia), Reducer, Screen pipe, Sand trap assembly etc.
| Item | Nominal
dia | Outside dia | Wall Thickness | Length | ||
|---|---|---|---|---|---|---|
| Min | Max | Min | Max | |||
| Upper Casing | 80 | 80 | 88.3 | 4.0 | 4.6 | 3000 + 10 |
| Rising Main | 50 | 60 | 60.2 | 2.5 | 3.0 | 3000 + 10 |
| Lower Casing | 40 | 48 | 48.2 | 3.5 | 4.0 | 3000 + 10 |
| Top Pump Road | 32 | 42 | 42.2 | 2.2 | 2.7 | 1000 + 10 |
| Pump Road | 32 | 42 | 42.2 | 2.2 | 2.7 | 3000 + 10 |
| Sand Trap | 40 | 48 | 48.2 | 3.5 | 4.0 | 1040 + 10 |
| Piston Rod | 32 | 42 | 42.2 | 2.2 | 2.7 | 1000 + 10 |
| Cylinder Pipe | 50 | 60 | 60.2 | 2.5 | 3.0 | 3000 + 10 |
| S.NO | ITEM DETAILS | No required for well depth
| ||
|---|---|---|---|---|
| 15 Mtr | 30 Mtr | 40 Mtr | ||
| 1 | Pump Head Assembly | 1 | 1 | 1 |
| 2 | Handle Assembly | 1 | 1 | 1 |
| 3 | Stand Assembly | 1 | 1 | 1 |
| 4 | Pump Rod | 2 | 3 | 5 |
| 5 | Pump Rod Top | 1 | 1 | 1 |
| 6 | Piston Rod & Piston Assembly | 1 | 1 | 1 |
| 7 | Cylinder & Foot Valve Assely. | 1 | 1 | 1 |
| 8 | Rising Main | 1 | 2 | 4 |
| 9 | Rising Main Top | 1 | 1 | 1 |
| 10 | Upper Casing | 3 | 4 | 6 |
| 11 | Lower casing | 1 | 5 | 6 |
| 12 | Robo Screen. | 2 | 2 | 2 |
| 13 | Screen coupler | 1 | 1 | 1 |

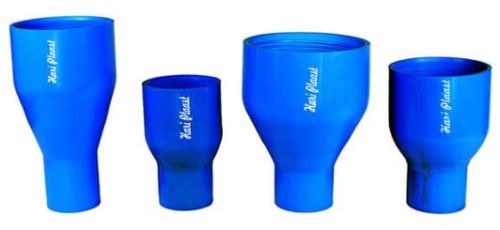

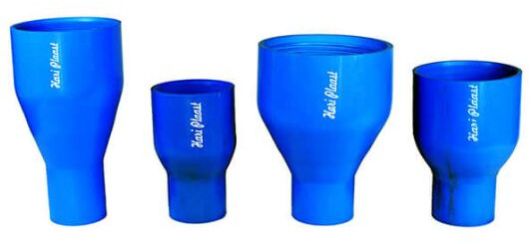

| 14 | PVC Reducer | 1 | 1 | 1 |
| 15 | Sand trap | 1 | 1 | 1 |
| 16 | C.I.Cutter Plug. | 1 | 1 | 1 |
| 17 | Retrieving Rod | 1 | 1 | 1 |
| 18 | Combination Spanner | 1 | 1 | 1 |
| 19 | Solvent cement | 100 gms | 150 gms | 200 gms |
