Product Details

Duration of test : One day i.e. on 23/06/2013 including specification checking and performance evaluation against threshing of wheat and maize crop.

Safety and ﬁnishing : Finishing and colour was acceptable. Safety provision at the feeding point was lacking.

Ease of operation : Easy to connect with the power source and easy to operate.

Ease of repair and maintenance: Maintenance is required in every season with respect to greasing, oiling 81. change of blade.

Defects & Breakdown observed. : No breakdown was observed during test period. if any

Performance parameters: The output capacity of the machine was calculated based on observed data for 1 hour of running in two replications. The output may vary according to the crop moisture content and variety.

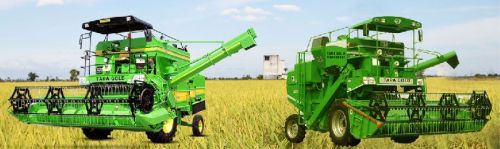

1.	Name of machine	Combine Harvester
2.	Make / Trade name	Star Agro Industries
3.	Applicant	M/s Star Agro Industries At+PO— Domohana, District — Uttar Dinajpur (West Bengal)
4.	Manufacturer	Applicant is the manufacturer in this case.
5.	Type of test	Specification checking and operational test.
7.	Mode of selection	Machine supplied by the manufacturer at the test site
8.	Tractor used for test	MF 5245 DI
9.	Test Engineer	Er. Sanjay Kr. Choudhary, College of Agricultural Engineering, Pusa

Diesel Capacity (Ltrs.):	340
System Voltage:	24 v negative ground
Battery:	12 v 100 ah
Alternator Output:	24 volt
Effective Cutter Bar width. (mm):	4280
No. & Spacing of Guards :	58 (29 Pairs) 75 mm apart.
No. & Type of Knife Blades :	59, Serrated.
Detail of Knife Drive :	End of Cutter Bar is connected with a Crank Arm to the Pitman Shaft and oscillated by a Crank Arm.
Knife Safety Arrangment:	Knife Guard Provided.
Knife Stroke (mm):	75
Strokes Per Minute :	976
Knife Speed Corresponding to 1700 :	1.2
Type of Crop Dividers:	Shoe

Wheel axle length :	3350 (63 mm dia)
No. of sieve :	02
Size of hole for wheat :	13 No. (upper), 6N0. (lower)
Size of hole for maize :	20No. (upper), 6N0. (lower)
No. of fan blade for straw knots :	12
No. of stud for straw :	28
Length of stud for straw :	140 mm
Length of standard for straw knots :	114 mm
Size of threshing concave (D x L) :	838 x 1830 mm
Size of threshing drum (Dx L) :	560x1778 mm
Threshing cylinder speed :	550—700 rpm
No. of beater :	68
Dimension of each beater :	114 x 38 x 6mm
Shaft length :	3350 mm
Shaft dia :	63 mm
No. of knife (blade) section on threshing cylinder :	06
Clearance between concave & drum :	10 mm
No. of fan belt for power transmission :	03
Size of fan belt :	PC 102 (3 Pc); DB 66 (1 Pc)
Overall weight of thresher :	1325kg
