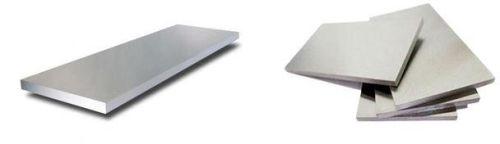

Hastelloy C22 Plate, Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, Etc

Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness0.3 mm to 120 mm
SpecificationsASTM B575 / ASME SB575, BS EN 10088-2, en 10028-7, IS 6911
Size RangeCold rolled ASME SB575 Grade C22 Hastelloy Sheet 0.5-6.4 mm, Hot rolled ASME SB575 Grade C22 Hastelloy Sheet 3.0–10.0 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location India only

Company Information

Ask for more detail from the seller

Report incorrect details

Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness0.3 mm to 120 mm
Size RangeCold rolled ASME SB575 Grade C22 Hastelloy Sheet 0.5-6.4 mm, Hot rolled ASME SB575 Grade C22 Hastelloy Sheet 3.0–10.0 mm
SpecificationsASTM B575 / ASME SB575, BS EN 10088-2, en 10028-7, IS 6911
HardnessHalf Hard, Soft, Hard, Quarter Hard, Spring Hard
StandardMSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Width1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Hastelloy C22 Sheet & Plate Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
Hastelloy C22	2.4602	N06022	NW 6022	NiCr21Mo14W

Hastelloy C22 Sheet & Plate Chemical Composition

Grade

Hastelloy C22

0.010 max

0.50 max

0.08 max

2.5 max

0.02 max

2 – 6

12.5 – 14.5

Bal

20 – 22.5

0.02 max

2.5 – 3.5

0.35 max

Hastelloy C22 Sheet & Plate Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45%
