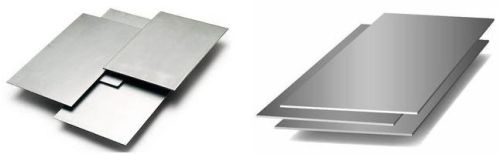

Hastelloy C276 Plate, Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, Etc

Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness0.3 mm to 120 mm
Size RangeCold rolled ASME SB575 Grade C276 Hastelloy Sheet 0.5-6.4 mm, Hot rolled ASME SB575 Grade C276 Hastelloy Sheet 3.0–10.0 mm
SpecificationsASTM B575 / ASME SB575, BS EN 10088-2, en 10028-7, IS 6911
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location India only

Company Information

Ask for more detail from the seller

Report incorrect details

Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness0.3 mm to 120 mm
SpecificationsASTM B575 / ASME SB575, BS EN 10088-2, en 10028-7, IS 6911
StandardMSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
HardnessHalf Hard, Soft, Hard, Quarter Hard, Spring Hard
Size RangeCold rolled ASME SB575 Grade C276 Hastelloy Sheet 0.5-6.4 mm, Hot rolled ASME SB575 Grade C276 Hastelloy Sheet 3.0–10.0 mm
Width1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Hastelloy C276 Sheet & Plate Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
Hastelloy C276	2.4819	N10276	NW 0276	NiMo16Cr15W

Hastelloy C276 Sheet & Plate Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010 max	1.00 max	0.08 max	0.03 max	2.50 max	50.99 min*	14.50 – 16.50	4.00 – 7.00	15.00 – 17.00	0.04 max

Hastelloy C276 Sheet & Plate Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %
