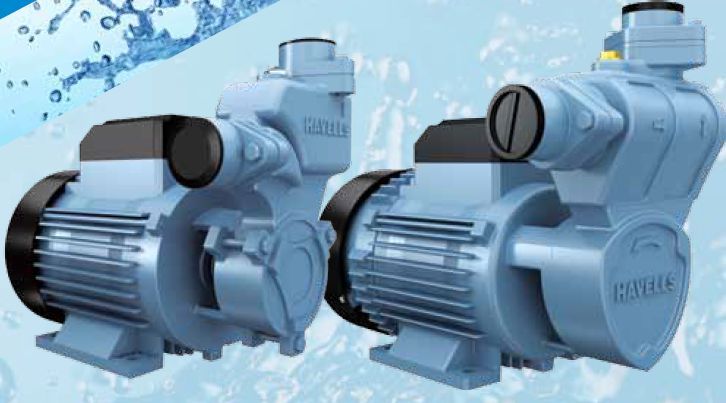

SE-Series Self Priming Monoblock Pump

Listing ID #5196391

Operating Conditions

• Operating water temperature: upto 55°C
• Max working pressure: 5.5 kg/cm2
• High suction with self-priming: upto 8 metre
• Low power consumption
• Wide voltage operating range (180 V-240 V)
• Direction of rotation: Anti-Clockwise when viewed from driving end

Motor

• Motor Body: High quality aluminum pressure die casted / aluminum extruded
• Motor Stator: Low Watt loss silicon steel laminations
• Rotor: Dynamically balanced
• TEFC motor (2 Pole / 4 Pole) suitable for 180 V-240 V, 50 Hz single phase AC power supply
• F Class Copper Winding wires
• In-built thermal overload protector (T.O.P.)
• Motor Insulation Class F
• Motor protection IP-55

Applications

• Used in gardening, farm houses & building construction
• For lifting water to overhead storage tanks
• Pressure booster systems
• Hotels, hospitals and fountains
• Water circulation in Industries

Pump Construction

• Pump Casing: Cast iron FG 200
• Impeller: Forged brass for longer life
• Shaft: High grade stainless steel / EN8
• Mechanical seal: Carbon Vs ceramics

Benefits of Havells Pump

• Motor Insulation Class-F: Motor design is compact and motor temperature withstand capacity increases upto 1550C. It protects motor from winding burning due to voltage fluctuations.
• IP-55 Protection: Pump is protected from dust & water splashes.
• Motor Windings: F Class copper winding wires gives high motor efficiency and high temperature withstanding capacity.
• Thermal Overload Protector (TOP): Havells Pumps are provided with TOP to safe guard motor     from burning.
• Pump Shaft: Stainless Steel / EN8 Shaft ensures longer life.
• Pump Casting: High Grade Pump Castings (FG-200 grade)* ensures the better mechanical strength hence enhanced pump life.
• Pump Seal: High quality mechanical seal has long life with lesser wear and tear.
• Impeller: Forged Brass# Impeller is wear & tear resistant.
• Pump Warranty*: Pumps with upto 2 Year Warranty stands for high quality assurance.
• Home Service: Home service of the pumps assures trouble free service at customer door step.
