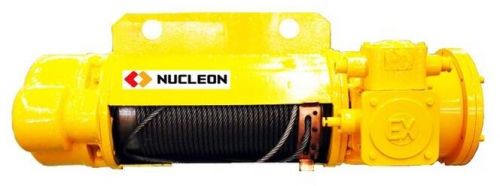

HB Wire Rope Electric Hoist, Brand Name : Nucleon

Brief introduction�
explosion proof performances of all motors and electric components of top quality hb wire rope electric hoist explosion proof international certificate satisfy standards stipulated by gb3836.2.
It is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and jib cranes, with slight modification, it can also be used as a winch. It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
This product is suitable for areas where the explosion transmission is not higher than �b or�c and the ignition temperature group of gas or explosive mixture of steam and gas is not lower than t4.
Details showing�
1.reducer:
as an independent part, loading and unloading conveniently.3 lever fixed bearing helicopter
gear transmission mechanism,gear and gear shaft made of alloy steel with heat treatment.
box cover is made of high quality iron,assembly well,sealed well.
2.control box:
fire stop device which can cut off the circuit in case of emergency to protect operation safety.
3.wire:
adapt gb1102-74(6ã�37+) standard load wire ,ensure electric hoist durable using.
4.cone-shaped motor:
lifting motor is higher starting torque tapered brake rotor asynchronous motor,need no extra brake.insulation is b grade or f grade, motor protection grade is ip44ip54.
5.button switch:
handle control:light and convenient, offer two kinds :ring control and wireless remote control.
