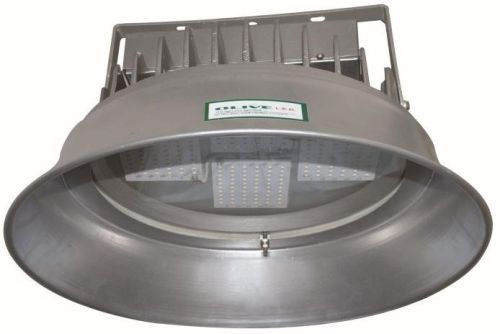

HBOL-200 LED High Bay Light

₹ 5,000 - ₹ 14,000 / Piece

MOQ10 Piece(s)
Efficiency>85%
Frequency50Hz-60Hz
Internal wiringTeflon
Input wire3 Core (Red Phase, Black Neutral, Green Ground)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 10 Years
Nature of Business Retailer
GST No. 07AAACO1102E1Z9

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Efficiency>85%
PF>0.95
Input wire3 Core (Red Phase, Black Neutral, Green Ground)
Voltage Range90V-270V AC
Internal wiringTeflon
THD<10%
Illuminance DesignLED + Reflector
Storage Temperature-25°C ~ +65°C(Best 25°C)
Frequency50Hz-60Hz
ApplicationsSheds, Compounds Inspection Area, Stores, Factories
Phase typeSingle phase

Unique Features : Designed and die casted with high class LM-06 grade aluminium supported with all SS 304 grade accessories, toughened glass and equipped with LM 80 certified LEDs and electronic component to perform and give best possible results.
Features:

High voltage protection
Over current protection
Over heat protection
Surge protection 4KV
Short Circuit protections

Housing Specifications

Body Material	Aluminum
Dimension	510x260mm
Weight	8.5 Kg
Ingress Protection	IP-65
Cover	Acrylic
Gasket	Silicon
Accessories	Stainless Steel
Paint	Powder Coating
Mounting	“C” Clamp
Power Cord	1mm² triple shield wire
Certificate	CE, RoHS, BIS, FCC, BEE

Lighting Specifications

Available wattages	125W, 150W, 200W, 225W, 250W
No. of LEDs	120, 160, 200, 200, 240
Lumens Output (Datasheet)	145 lumens/Watts
Color Temperature	2700~7000k(optional)
Beam Angle	120^°
CRI	>80 Ra
Operating Temp.	-40^°C to 60^°C
Life Span	>50000H
