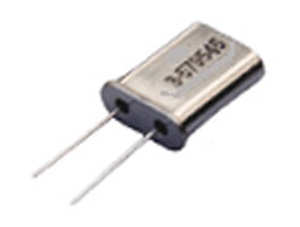

HC-49U Quartz Crystal Resonator, Oscillator

HC-49U Quartz Crystal Resonator Specification: Standard frequency: 1.843MHz~150.00MHz Adjust the frequency difference (at 25 ℃): +-30ppm or specify Temperature frequency difference (reference point temperature 25 ℃):+-30ppm or specify Temperature range: -20℃~+70℃ or specify Aging rate: +-5ppm year Max Storage temperature range (Tstg): -40℃~ +85℃ Static capacitance: 7pF max Insulation resistance: 500Megaohms Minimum at 100VDC Excitation power: 100μW(500μW Max) Load Capacitance: 20pF 18pF 16pF or specify
