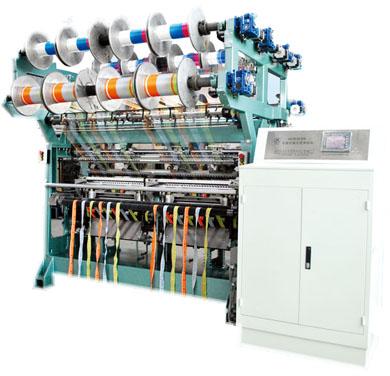

HCR8-ET Belt Warp Knitting Machine

High Lights
6 shafts E-positive yarn feeding system: Set the yarn feeding parameters through PC touch screen (equipped with the servo motors from Tai Wan)
16 guide bars EL: Pattern processes can be input through USB, active and saved with PLC (equipped with the servo motors from Japanese brands)
Double needle bar 12-18 lath needles (optional)
Main motor frequency conversion, CVT
Two sets of sinker device
Valid working width: 79� (1778 mm)
Standard: QHCZZ001-2007
Suitable products: Fashion accessories, medical bandage, pets leash.
Technical Specification
Needle-type: Latch needle
Machine gauge: E18 E22
Products width allowance: 660 mm X 2
Number of guide bars: 8
Method of warp let-off: E-positive, customized beaming parameters (EBC)
Beam size: 14�
Flange Diameter: �356
Shaft Diameter: �102
Aperture: �70
Beam Width: 356 mm
Density tuning method: Digital controlled, PC touch screen operation (EBA)
Braiding method: EL
Main shaft speed: 0-400 RPM (frequency control)
Main motor: 2.2 KW
Yarn feeding motor: 1 KW � 6 pieces
Shogging motor: 0.75 KW � 16 pieces
Outline dimension: 3000mm (Length) x 2300 mm (wide) x 2600mm (height)
Total weight: 3000 kg
