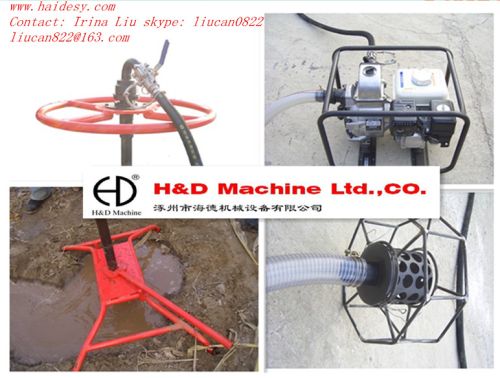

We are offering hd-15 flush drilling rig.
Applications: the blast hole, seismic drilling on soft formation.
Layout of main rig and operation mode: hand-disk power swivel drill, human lifting and dropping, without rotary power
advantages: light weight, easy to operate and cheap.
Package: plywood case
main specification
drilling method: mud drilling air drillinghammer drilling
drilling depth: 15m hole diameter: 75mm82mm90mm
pipe(diameter×length): φ42×1500
hand-disk power swivel: weight: 28 kg disk radius: 800~1250mm options
centrifugal pump set standard displacement: 680 lmin
pump head: 27 m gasoline engine power: 6.5 hp weight: 31 kg
air screw compressor set options
displacement: 3.2 m3min
pressure: 7 bar
gasoline engine power: 38 hp
weight: 196 kg
