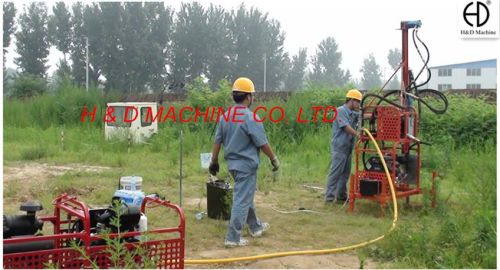

Hd 30 Man Portable Drilling Rig, Brand Name : HAIDE

We offer hd 30 man portable drilling rig.
1、 main specification
drilling methoddepth:
mud drilling30 m, air drillinghammer drilling30 m, screw drilling15 m
pipe (diameter×length): φ60×1500, φ50×φ90×1500
hole diameter758290mm
power swivel: ratedtorque: 660 n.m
rated speed: 0～170 rmin
hoistingpush-down system: max. Hoisting weight: 1000 kg
max. Push-down force: 4 kn
max. Hoisting speed: 0.77 ms
hydraulic system: working pressure: 190 bar
engine power: 23 hp 3600rmin
piston mud pump: gasoline or diesel power option
pressure: 14 bar displacement: 120 lmin weight: ≤115 kg
air screw compressor: 1 set
total displacement: 3.0～3.8 m3min
pressure: 0.8 mpa, power: kohler 38hp
weight: ≤190 kg (one set)
