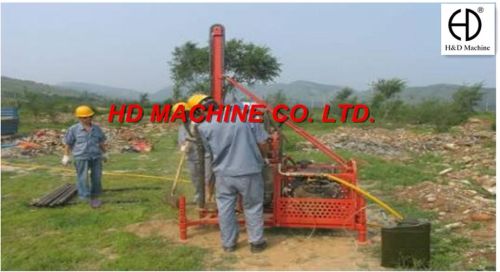

Hd-40a Man Portable Drilling Rig, Brand Name : HAIDE

We are offering hd-40a man portable drilling rig.
1� main specification
drilling methoddepth
mud drilling40 m, air drillinghammer drilling40 m
screw drilling20 m, reverse circulation drilling20 m
pipe (diameterã�length): ï�60ã�1500, ï�50ã�ï�90ã�1500, ð¤107ã�ð¤70ã�1500mm
hole diameter: 758290110mm
power swivel: rated torque: 1300 n.m
rated speed: 0�150 rmin
hoistingpush-down system: max. Hoisting weight: 2000 kg
max. Push-down force: 7 kn
max. Hoisting speed: 0.73 ms
hydraulic system: working pressure: 200 bar
engine power: 27hp 3600rmin
piston mud pump: gasoline or diesel power option
pressure: 14 bar
displacement: 120 lmin
weight: �115 kg
air screw compressor: 2 sets
total displacement: 3.6�4.2 m3min
pressure: 0.8 mpa
weight: �340 kg (two sets)
power: kohler 27hp
air screw compressor: 1 set
total displacement: 3.0�3.8 m3min
pressure: 0.8 mpa
power: kohler 38hp
weight: �190 kg (one sets)
