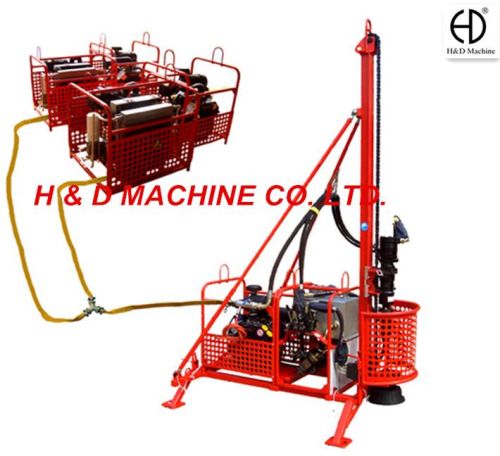

Contact SupplierWe are offering hd-80 man portable drilling rig.
Main specification
drilling method depth
mud drilling80 m, air drilling hammer drilling40 m
screw drilling30 m, reverse circulation drilling30 m
pipe (diameter×length): φ60×1500, φ50×φ90×1500, ф107×ф70×1500mm
hole diameter: 758290110mm
power swivel: rated torque: 1520 n.m
rated speed: 0~170 rmin
hoisting push-down system: max. Hoisting weight: 2000 kg
max. Push-down force: 7 kn
max. Hoisting speed: 0.73 ms
hydraulic system: working pressure: 250 bar
engine power: 27hp 3600rmin
piston mud pump: gasoline or diesel power option
pressure: 14 bar
displacement: 120 lmin
weight: ≤115 kg
air screw compressor: 1 set
total displacement: 5~6 m3min
pressure: 0.8 mpa
power: kohler 38hp
weight: ≤400 kg(two sets)
