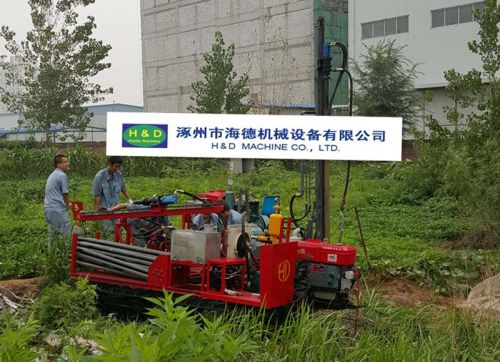

Hd-c100a Mechanical Drive Crawler Drilling Rig, Brand Name : HAIDE

We are offering hd-c100a mechanical drive crawler drilling rig 1、 drilling rig characteristic：
this drilling rig is suitable for drill holes for petroleum prospecting in complex areas, such as the loess plateau, the jungle, gobi, grasslands, snow, forests, swamps, the seasonal farmland etc.
With different of combination methods, the rig has the function of air drilling, air hammer drilling, auger drilling, and mud drilling etc. It’s maximum drilling depth is 100 meters.
It employs full-hydraulic driven, simple to use and easy to maintain. The machine selects the mature products of well-known specialized company of the world, for example: hawe, stauff, eaton and so on, guarantee the rig reliable.
The rig is equipped rubber crawler chassis which is driven by mechanical transmission. It’s operation convenient, and has high speed, low ground pressure, strong adaptability to ground surface. It is meet the demand of vegetation protection and green construction.
The rig is powered by 40hp diesel engine. It is the ideal power in field reducing fuel consumption.
2、 main specification
drilling method: mud drilling (with mud pump) drilling depth: 100m
air(hammer) drilling (with compressor ) drilling depth: 40m
casing drilling(with compressor and hammer) drilling depth:40m
the method of throwing dynamite: after lift-ing the drills, center of the casing
hole diameter: 3”,3.5”
pipe(diameter*length) (mm): φ60*3000, φ50*1500 +φ102*1500
power swivel: ratedtorque: 1300 n.m
rated speed: 0～365 rmin
hoistingpush-down system: max. Hoisting weight: 1300 kg
max. Push-down force: 20kn
max. Hoisting speed: 1.8 ms
hydraulic system: working pressure: 210 bar
engine power: 40hp 3600rmin
weight: chassis weight: ≤280kg
total weight: ≤600 kg
rubber crawler: dimension: 1200x280x360x2
ground pressure:
