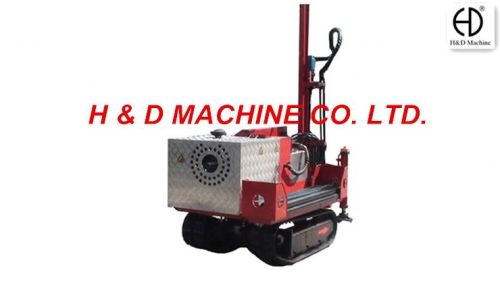

Hd-c30 Crawler Drilling Rig, Brand Name : HAIDE

We are offering hd-c30 crawler drilling rig.
1、 drilling rig characteristic：
this drilling rig is suitable for drill holes for petroleum prospecting in complex areas, such as the loess plateau, the jungle, gobi, grasslands, snow, forests, swamps, the seasonal farmland etc.
With different of combination methods, the rig has the function of air drilling, air hammer drilling, auger drilling, and mud drilling etc. It’s maximum drilling depth is 30 meters.
It employs full-hydraulic driven, simple to use and easy to maintain. The machine selects the mature products of well-known specialized company of the world, for example: kohler, hawe, stauff, tuhill, white and so on, guarantee the rig reliable.
2、 main specification
drilling methoddepth （m）
mud drilling30m,air(hammer) drilling30m,auger drilling20m,casing drilling20m
pipe(diameter*length) (mm)φ60*1500, ф100×60×3×1500, φ60*1500 +φ102*1500
explosive method: after lifting the drills, center of the casing
hole diameter(mm): 3”,3.5” 6882100
power swivel: rated torque: 680 n.m
rated speed: 0～260 rmin
hoistingpush-down system:
max. Hoisting weight: 1500 kg
max. Push-down force: 10 kn
max. Hoisting speed: 1.24 ms
hydraulic system: working pressure: 205 bar
engine power: 270 hp 3600rmin
weight: chassis weight: ≤375kg total weight:≤1200 kg
rubber crawler: dimension: 1600x230x360x2
ground pressure: 30°
roll back angle:>30°
overall dimension: about 1750×1250×2830 when working
about : 2350×1250×1500 when moving
