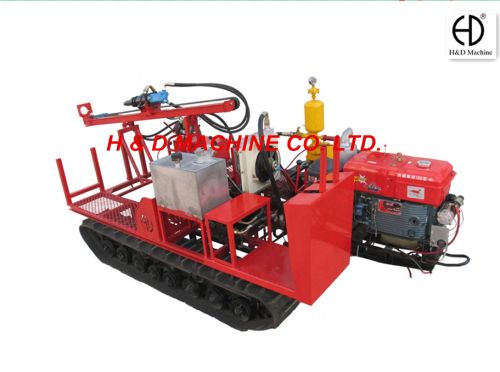

Hd-c40 Mechanical Drive Crawler Drilling Rig, Brand Name : HAIDE

We are offering hd-c40 mechanical drive crawler drilling rig.
This drilling rig is suitable for drill holes for petroleum prospecting in complex areas, such as the loess plateau, the jungle, gobi, grasslands, snow, forests, swamps, the seasonal farmland etc.
With different of combination methods, the rig has the function of air drilling, air hammer drilling, auger drilling, and mud drilling etc. it’s maximum drilling depth is 40 meters.
It employs full-hydraulic driven, simple to use and easy to maintain. The machine selects the mature products of well-known specialized company of the world, for example: kohler, hawe, stauff, tuhill, white and so on, guarantee the rig reliable.
2、 main specification
drilling methoddepth （m）
mud drilling40m
pipe(diameter*length) (mm)φ60*2500
explosive method: after moving the tools
hole diameter(mm): 3”,3.5” 6882mm
power swivel: rated torque: 445n.m
rated speed: 0～410 rmin
hoistingpush-down system:
max. Hoisting weight: 1500 kg
max. Push-down force: 20 kn
max. Hoisting speed: 1.1ms
hydraulic system: working pressure: 210 bar
engine power: 270 hp 2200rmin
weight: chassis weight: ≤500kg total weight:≤1000kg
rubber crawler: dimension: 2000x350x450x2
ground pressure: 30°
roll back angle:>30°
