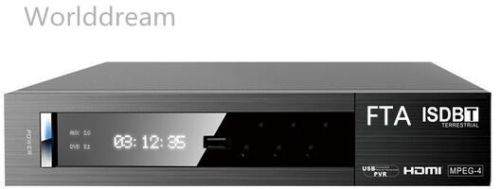

HD FTA ISDB-T Set Top Box, Brand Name : OEM

We are offering hd fta isdb-t set top box fully supports isdb-t (brazil standard).
Flash 32m bytes
demodulator type isdb soc chip set
tuner rafael r836
usb 2.0 embedded two host
front panel 4-digit led display on front panel
red led standby on front panel
rear panel
tuner rf input connector ec-type iec169-2 female
tuner rf loop through connector iec-type iec169-24 male
rear panel hdmi v 1.31.4
ypbpr rcax1
coaxial x1
rca cvbs al ar connector x1
power ac100~240v 50hz60hz
demodulation
demodulation terrisal receiver standard
isdb-t broadcast (1, 3, 13 segment)
input rf frequency
vhf:177.143~213.143 mhz:uhf 473.143~803.143mhz.
bandwidth
6mhz
constellation
qpsk 16-qam 64-qam and 256-qam
fec
12, 35,23, 34,45,5678 automatic
fft mode
2k 8k32k
input level: -83 - -5dbm
system
used for any isdb-t countries like brazil, peru, argentina,chile,venezuela,philippinesecuador
supports all isdb-t broadcast (1, 3, 13 segment), mpeg-2mpeg-4 avch.264 hdsd video , divx compliant
support 3d interface
support teletextsubtitlemuti-language
•supported 7-day epg function, vbi teletext
language
chinese , english ,germany ,japanese, korea etc. 24 languages
auto, 16:9 pillar box, 16:9 pan g scan, 4:3 letter box, 4:3 pan g scan, 4:3 full, 16:9 wide screen
usb 2.0 for pvr,timeshift,software upgrade and media files playback
video output resolution: 480i576i480p576p720p1080i1080p
decoder
video decoder compliant with: mpeg-4 part10mpeg-2 isoiec 13818
mpeg-4 simplemainadvanced profile@level3(10mbps)
mpeg-2 main profile# main level(15mbps)
h.264 mp#l3(10mbps).h.264 hp l4.1(25mbps)
audio decoder mpeg-1, mpeg-2 (layer iii), mp3, ac-3 (dolby digital), aac-lc, wma
e-ac-3 (dolby digital plus) decoding he-aac 5.1 multi-chhannel decoding
