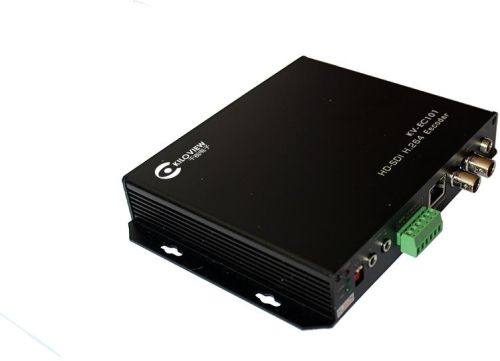

HD SDI H.264 MPG4 Video Encoder

KV-EC101&EC101A is a HD video network encoding transfer
product with high performance. It’s of reliable performance, high quality
and easy operation due to the optimized design. KV-EC101&EC101A
supports the input of HD digital video and AESEBU embedded audio
over the SDHD3G-SDI interface, SDI can be looped out
simultaneously. The supported HD video format is up to
1080p30.
Features:
Supports SDHD-SDI interface and AESEBU embedded audio
SDI Signal physical loop out, over signal RE-CLOCK and driving after looping out, can realize the
restoring and relay driving ability;
1 analog audio input, 1 analog audio output, can realized the function of two-way intercom;
1 discrete input, 1 discrete output, can realize the function of two-way alarm signal exchange;
signal with the decoder PC;
Supports various video formats of 1080p3029.972524,1080i6059.9450,720p6059.9450;
Identify video format automatically, encode SDI signal once it’s inserted;
H.264 High Profile (up to level 4.1) encoding, bellow 50ms of encoding delay;
AAC-LC high acoustic fidelity audio encoding, support G.711 encoding also;
Dual streams support( One main HD stream up to 1920x1080@30fps and one sub stream up to
720x480720x576@30fps );
RTPRTSP transmission protocol ( According to RFC1889RFC2326 );
Compatible with ONVIF 1.12.0 specification, easy to integrate with NVR and software management
system;
Encoding bitrate is adjustable, picture quality can be controlled;
Web based management, online video preview;
supports two-way voice talkback , RS-485 signaling get through and alarm signal get through ( *TO
match up the KV-DC Series Decoder );
Provide communication protocol for software development SDK and device management control
which can integrate seamlessly with third application platform.
