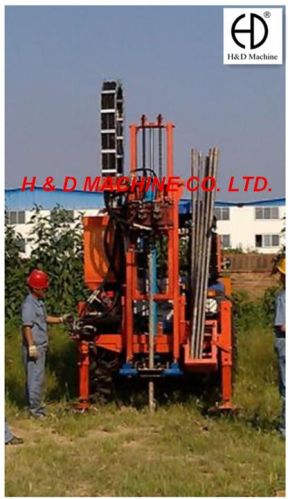

Hd-t100a Sonic Tractor Drilling Rig, Brand Name : HAIDE

We are offering hd-t100 drilling rig is mounted on a four-wheel-drive tractor; the hydraulic system is powered from the pto shaft of the chassis with a simple structure . It can drill to any stratum anywhere it can reach. It also move fast like the truck-mounted drills and high cross-country ability like the caterpillar track-mounted drills, perfect mobility and cross-country ability, high efficiency, wide usefully.
This drilling rig is controlled easily, operated flexible, move conveniently meet the request of qhse about do seismic exploration.
2、 main specification
drilling method and depth:
mud drilling: 100m, air drillinghammer drilling: 40m, sonic vibrate drilling: 20m 15m
casing drilling: 12m 20m
hole diameter: 75mm 90mm 102mm
pipe (diameter×length): φ60x2800, φ76x2500, φ89x2000, φ102x1500
explosive method: after lifting the drilling pipes, center of the drilling pipe
multifunctional power swivel sonic vibrate drilling
rating torque: 1310 n.m
rated speed: 0～390 rmin
max. Vibrate frequency: 180 hz
max vibrate force: 194 kn
hydraulic system: working pressure: 180bar
hoistingpush-down system hydraulic cylinder control double speed slid frame
max. Hoisting weight: 2800 kg
max. Push-down force: 14 kn
max. Hoisting speed: 0.85 ms
machine stabilization: two rear jacks
pipe clamp : two direction hydraulic clamp single cylinder clamp (options)
unscrew tool: swivel hydraulic control slide fork well-top hydraulic clamp(options)
engine power: 51.4kw2400rmin
air screw compressor standard
displacement: 5.6 m3min pressure: 7 bar
overall parameter: weight ≤5000 kg
dimension（lxwxh）5000x1200x3300
