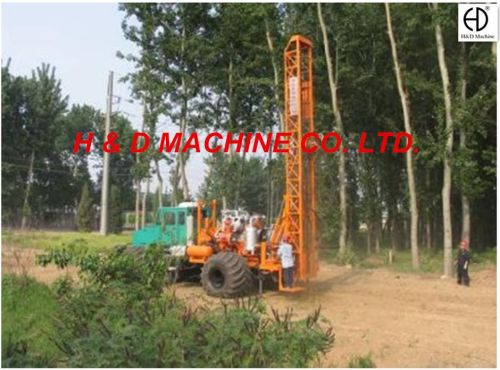

HD-T200 Truck Mounted Drilling Rig

We are offering hd-t200 truck mounted drilling rig.
1. Characteristic
the rig adapts to deep well drilling in the complicated terrain, such as: the desert, gobi, grasslands, swamps, beaches, seasonal waters, etc. The piston air compressor(the screw air compressor option)and the piston mud pump are installed, they are used to complete the blasting holes, cement paste (water) grouting holes, monitoring holes or well drilling constructions with the direct circulation drilling method. It is a powerful truck-mounted rig of comprehensive drilling ability.
2. Main specification
drilling methoddepth
mud drilling: 200 m air drillinghammer drilling: 150 m
pipe: (diameter×length): φ63×4500
hole diameter: 114mm
power swivel: rated torque: 4000 n.m
rated speed: 0～335 rmin
hydraulic system: working pressure: 190bar
push down hoisting systemhydraulic motor+chain
max. Hoisting weight: 4000 kg
max. Push down force: 32 kn
max. Hoisting speed: 1.2 ms
derrick: square section trusses frame
machine stabilization: two rear jacks
pipe clamp: mechanical clamp hydraulic clamp (options)
unscrew tool: mechanical slide fork hydraulic slide fork (options)
air piston compressor standard
displacement: 12.5 m3min pressure: 8 bar
piston mud pump options
displacement: 600 lmin
pressure: 80 bar
vehicle: power: 231kw
speed: 2300rpm
overall dimension: length×wide×high
when move: 10300×3600×4200
when running: 8700×3600×8800
overall weight: ≤15800 kg
