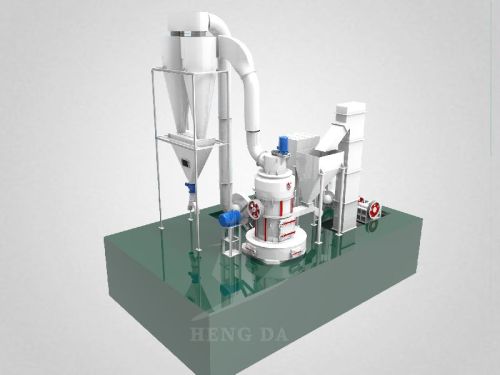

HDB130 German Grinding Technology Pulverizer Machine For Powder

HDB130 specification:
Input size (mm): 35
Final product size (mesh): 80-400
Main motor（kw): 90
Production (th): 1.5-10
Total weight (ton): 30
Power(kw): 225
Dimension(L X W X H) m: 10 X8.5 X 12
Technical structure features
1.The main unit and the Driving system constitute one located above the cover cylinder, with its compact structure, novelty, which is for the domestic initiative, the machine body directly installed in the ground, and the installation and aligning are very convenient, with simple foundation, good rigidity, and stable operation. This machine is high production, low power consumption. Low vibration, easy operation and stable performance
2.The reducer adopts a new type of reduction device: the primary engine speed can be adjusted according to the basic conditions. Which is suitable for different hardness of materials
3.The material volume of shoveling is larger: The shovel blade is optimization design, which can transfer the material to the rollers and ring In the greatest degree
4.The accuracy is high, and the frequency turbine classifying is adopted, the classifying impeller. The sealing surface of the impeller is formed into a palace shape seal with the dispose end face of the handle opening, and the shorts are not easy to be formed, and the separating powder does not run rough thus the passing rate is high.
5.Low power consumption, compared with HD Series grinding mill, power consumption reduced by 30%
6.The applied range: The range applies to Mohs hardness 6-9, humidity is below 6%, process nonflammable, non-explosive super hard materials, such as quartz, potassium feldspar, Albite zircon sand, titanium ore, chrome ore, Calcined bauxite, calcined kaolin, silicon carbide and so on
