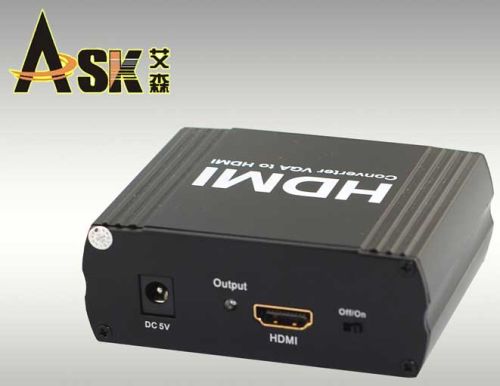

HDMI Adapter

We are offering hdmi adapter.
1 .vga to hdmi converter
2.support cec,bandwidth 5.1gbps
3.r/l analog audio input
4.support 720p
features
l one vga+r/l input signal convert to one hdmi 1.1 sink devices
l support video input : vga analog
l support audio input : r/l analog
l hdmi output : support up to 1280x1024, same format as input
l hdcp 1.1 protocol compliant
l support cec
l led indication : when source or sink is working, led relative to is light.
L support output up to 20metres awg26 cable length
l no loss of quality
l installs in minutes
l need dc5v/1a power supply
specifications: hdcvga0101
vga input….……………………………………support up to sxga/sga/uga(50/60/75hz)
audio input….…………………………………………………………………………..r/l analog
hdmi resolution …………………………... Support up to 1280x1024, same format as input
max transmission bandwidth…….………………….……………………………………5.1gbps
input video signal ………….…………………………..…………………….… 0.5~1.5volts p-p
output ddc signal ……………………………………………………………… 5volts p-p (ttl)
output cable distance…………………………….…...≤20m awg26 hdmi 1.3 standard cable
max working current………………………………………………………………………...600ma
power adapter format………….……input:ac (50hz, 60hz) 100v-240v; output: dc5v/1a
operating temperature range……..…………….………………………………… (-15 to +55°c)
dimension (l x w x h) ……………………………….…………….……………90x70x33(mm)
weight…..………………………………………………………..………..……………………155g
