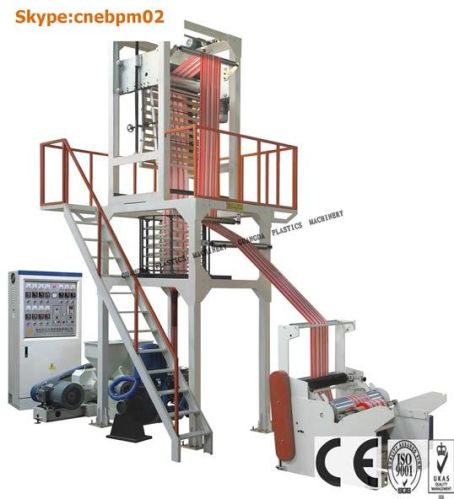

HDPE Double-colour Film Blowing Machine

We offer hdpe double-colour film blowing machine.
Model gd-40tc gd-45tc
suitable material hdpe
film width(mm) 200-600 300-800
film thickness(mm) 0.008-0.06 0.008-0.06
max, extrusion output(mm) 45kghr 55kghr
screw diameter(mm) φ 40+φ 40 φ 45+φ 45
screw ld length 28: 1
screw material 38 crmoala
cylinder material 38 crmoala
cylinder cooling 370w*2 370w*2
driving motor 15 18.5
temperature control 3+3 3+3
average power-consume(kw) 20 28
die size(mm) 70 100
temperature control 2
air ring 1 pcs
air blower 2.2 2.2
pinch roller(dia. Width)mm φ 165*650 φ 165*850
take-up speed(mmin) 10-100 10-100
take-up motor(kw) 0.75 1.5
type surface friction type
winding motor(kw) 6 6
winding speed(mmin) 100 100
cover dimension(m) 5.0*2.0*4.1 5.5*2.0*4.1
