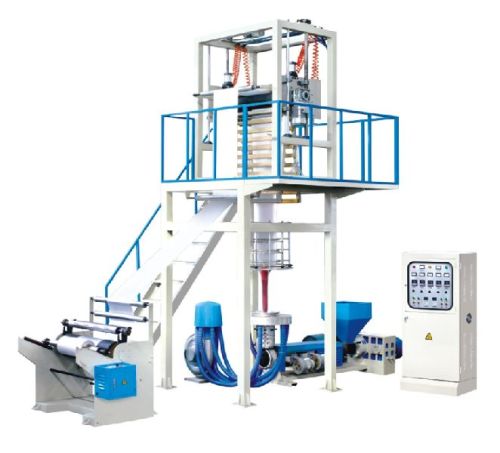

HDPE Film Blowing Machine

SJ-A65 Single layer Film Blowing Machine is used to make high density or low density polyethylene (HDPE or LDPE) into plastic film. This model of machine can make film width of 1000mm or 1200mm, we can enlarge the frame to suitable for producing width of 1200mm. It can produce packing film, laminating film, bags or film for textiles and clothing, agricultural covering film, and other packing material. All A model of film blowing machine can be changed to be B model, there are optional equipment for customer's choice. Two pieces of die head is with the machine for different width of adjusting. The main motor has frequency control (inverter control) of motor speed to improve the speed regulation and save electricity. The screw & barrel material is made from a nitrogen-treated chromium-molybdenum-aluminum alloy, 38CrMoAl. Optional device: auto loader, auto winder, film surface treater, double-lip air ring, high speed changer, air shaft, rotary die head, back to back winder.   Technical variables: Model A50 A55 A65 A65-1 Diameter of screw Φ50 Φ55 Φ60 Φ65 Reduced diameter of film(mm) 100-600 200-800 300-1000 400-1200 Single-face thickness of film(mm) 0.01-0.10 0.01-0.10 0.01-0.10 0.01-0.10 Max. Extrusion(kgh) 35 50 65 80 LD 28:1 28:1 28:1 28:1 Power of main motor(kw) 7.5-11 11-15 18.5-22 22 Power of Traction motor(kw) 1.1 1.1 1.5 1.5 Heating Power(kw) 11 13 19 21 Outline diameter(L*W*H)(mm) 4800*1900*3500 5500*2100*3800 6500*2300*4200 6500*.
