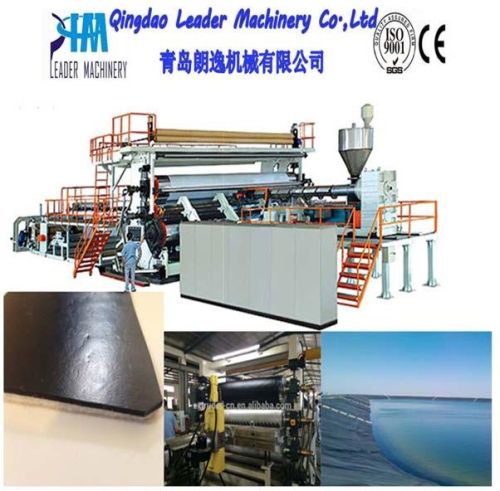

HDPE Geomembrane Production Machine

We are offering hdpe geomembrane production machine.
This line consists of:
1) xal-8002g vacuum feeding machine 1 set
2) dryer hopper 500kg capacity 1 set
3) sj-12033 high efficiency single screw extruder with dc motor 160kw, 1 set
4) hydraulic exchaning unit 1 set
5) t-type die head, jc-times brand 1 set
6) three roller calendar with diameter 450mm 1 set
7) temperature controller for calendaring system 1 set
8) cooling frame and edge trimming unit 1 set
9) haul off machine 1 set
10) plastic cutting machine -guillotine 1 set
11) pneumatic stacker 1 set
12) spare parts: 1set
main technical parameters:
1. Single screw extruder
this extruder can be vacuum-exhausted type according to the different materials.
The screw and barrel are specially designed according to different materials.
Main electrical parts adopts abb,omron,rkc,schneider, siemens, eurotherm, high precision.
Extruder can be siemens plc touch screen controlled.
2. T-tye die head and hydraulic exchanging units
brand: jc-times brand
material: 5crnimo, high quality die steel
hydraulic exchanging unit is single plate, double position, non-stop, no leakage, stable performance.
3. Three roller calendar
this calandering system can be vertical, oblique, horizontal according to the mateial attributes.
with rollers thermocontoling machine installed.
the space between three rollers can be adjsuted manually and automatically.
4. Cooling rollers with edge trimming units
cooling rollers can be 4m, 6m, 8m,10m according to products specification and customers' need.
edge cutting unit and slitting device can be installed.
5. Haul off machine
6. Twin position coiler: it is suitable for the thin sheet, like 0.2-2mm
7. Knife cutting machine-guillotine: suitable for under 10mm thickness sheet. It can be controlled by motor or hydraulic cutting
