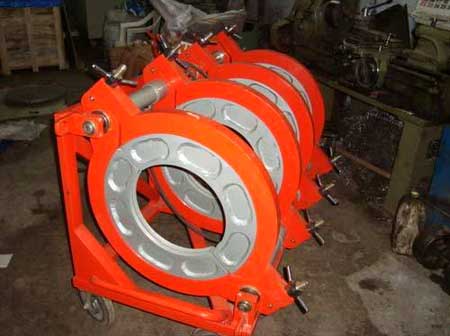

HDPE Pipe Butt Fusion Jointing Machine

We are offering the hdpe pipe butt fusion jointing machine is a self-aligning machine, suitable for welding ducts for the transport of gas, water, & drainage and other fluids under high pressure, up to diameter 500 mm. This model is designed in accordance to the indian and international correspondent standards ref 1626. pipe facing system

• electric motor 2 hp 1440 rpm
• gear box 1: 20 chain
• sprocket drive r p m 15
• both side alu plate 20 mm thickness
• single cutting blade on each side
• single bearing type system
• size:700 od 120 mm height
• specifications
  • machine body with a rectangular frame
  • four clamps studs and wing nuts
  • extractable mirror with digital temperature controller
  • power pack
    • hydraulic power pack
    • .5 hp single face motor with pump
    • poly hydron hand liver valve
    • flow control valve
    • 7 liters oil capacity tank
    • pilot check valve poly hydron pressure valve
    • pressure gauge
    • 150 kg working pressure
    • on request (accessories)
      • clamps adapters dia250, dia280, dia315, dia355, dia400, dia450mm
