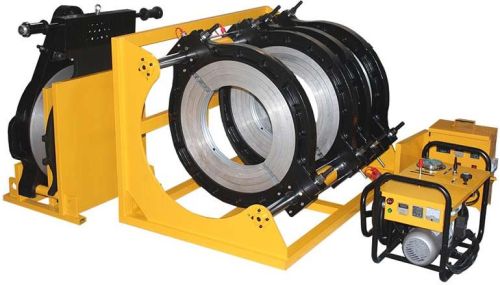

HDPE Pipe Welding Machine, Packaging Type : YELLOW

We are offering hdpe pipe welding machine.
Features:
- applied to connect pe, pp&pvdf pipe and pipe fitting onconstruction site, and in workshop.
- consists of basic frame, hydraulic unit, electric planning tool,heating plate, support for planning tool and heating plate.
- removable cast aluminum ptfe coated heating plate with separatetemperature controlling system.
- removable case aluminum electrical planning tool with safety limitswitch.
- made of lightweight and high strength material.
- electrical hydraulic pump with controls, and quick release hoses.
- low starting pressure ensures reliable welding quality of smallpipe.
- changeable welding position enables to weld various fittings moreeasily.
- separate two-channel timer records time in soaking and coolingphases with time alarm.
- high-accurate and shockproof pressure meter indicates clearerreadings.
- international warranty 12months.
- tool box including spare blades, thermocouple, quick couplings, sealrings, spanner and screwdriver, etc.
- optional parts: stub end device. Optional wheeled trolley is also available.
specifications:
- welding range: 280mm, 500mm
- temperature range:0, 270
- temperature variable: ±5
- power of heating plate: 6.5kw380v
- power of planning tool: 1.5kw380v
- power of hydraulic station: 1.5 kw
- power supply: 380v, 50hz
- max.working pressure : 6.3mpa
- total weight: 400kg.
