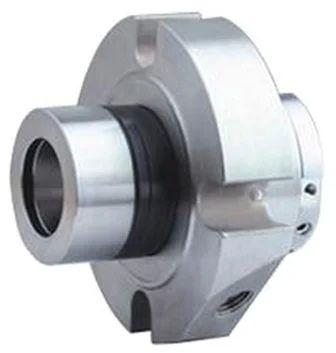

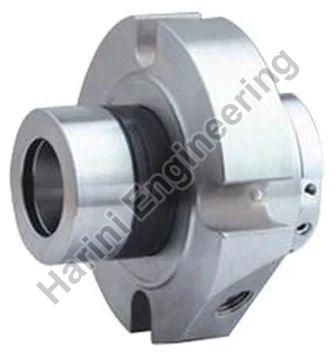

He Aesseal Cdsa Replacement Cartridge Mechanical Seal

₹ 6,500 / Piece

FinishingPolished
MaterialStainless Steel
Material GradeS316
Net Weight2kg
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

Member Since 10 Years
Nature of Business Retailer
GST No. 33AVHPG4114B1ZD

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

FinishingPolished
MaterialStainless Steel
Material GradeS316
ConditionNew
Automation GradeManual
UsageDouble (or tandem) seal suitable for hazardous/toxic fluids; ideal for chemical, petrochemical, pha
CertificationISO 9001:2008 Certified
Packaging TypeCarton Box
Outer Diameter50–200 mm
Working Pressure25 bar
Sealing TypeDouble cartridge
Number Of FlowerMechanical Seals
Thickness~38 mm
Tensile StrengthDependent on alloy (316L, Alloy 276).
Working Temperature–20 °C to +220 °C
Total Carbohydrate1 Year
Inner Diameter24 mm–125 mm
Suitable ForPumps, mixers, agitators in chemical, petrochemical, pharmaceutical, slurry or abrasive media applic
Net Weight2kg
Chemical ResistanceYes
Pressure (Bar)25 Bar
Temperature Range Deg C–20 °C to +220 °C
Country of OriginIndia
SpecialitiesUnbreakable, Heat Resistant, Fine Finish
Size32 Mm
ShapeRound
Tolerance–20 °C to +220 °C
Speed16–25 m/s
Pressure25 bar.
I Deal InNew Only
Temperature Range–20 °C to +220 °C
Face CoatingNo coatings
Density7.9 g/cm³

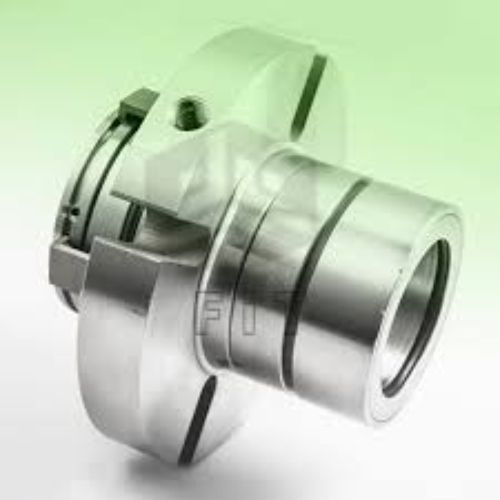

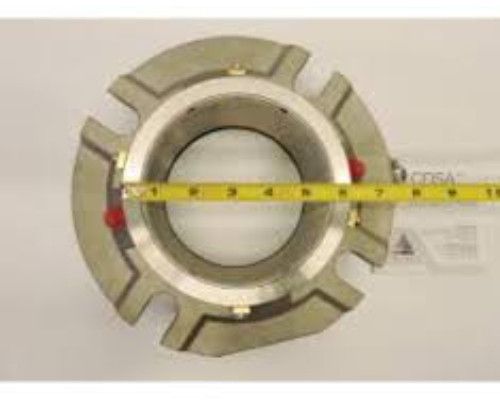

The CDSA™ is a cartridge-style double mechanical seal, ideally suited for hazardous or toxic fluids and high-stakes applications. Built around a modular design, it offers maximum configurability and quick installation—factory-assembled, pre-set, and pressure-tested to eliminate on-site adjustment errors .

A standout feature of CDSA™ seals is their self-aligning stationary faces, both inboard and outboard, balanced by a unique “universal joint” pivot that keeps faces square to the shaft under varying pressure and misalignment . Heavy-duty anti-rotation pins and spring-loaded internal rotary components further protect against pin shear or face clogging—especially in abrasive or slurry applications.

\ Advantages & Applications\

\
Hazardous fluid containment: Its double/tandem configuration and barrier fluid enable safe handling of toxic or high-vapor applications in chemical, petrochemical, and pharmaceutical industries.
\
\
Corrosion resistance: Exotic alloy options protect in aggressive chemical environments at minimal cost increase .
\
\
Robust under solids: Spring-loaded design reduces clogging; anti-rotation pins maintain alignment under slurry conditions .
\
\
Flexible customization: Face materials, elastomers, gland sizes, barrier systems, and exotic wetted parts make CDSA™ adaptable across a wide range of industrial specifications.
\
