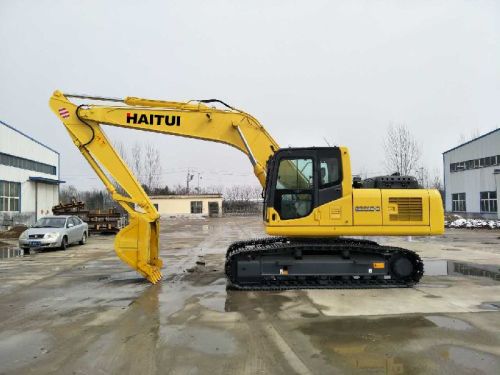

Crawlwer Steel HE210-8 Crawler Excavator, Brand Name : HAITUI

Model HE210.8
Weight 20.9
Bucekt capacity(m3) 0.8-0.93
Engine Model CUMMINS B5.9-C
Power(kwrmin) 1121950
Fuel Tank capacity(L) 350
Tracking speed(kmh) 5.23.5
turing speed(rmin) 11.7
Climbing ability(%) 70
bucket digging force(KN) ISO 145
Ground Pressure(KPa) 46.5
Hydrauli Pump Model K3V112DT
Maximum Flow�Lmin) 200*2
Operation Pressure(MPa) 34.3
Oil Tank Capacity(L) 246
A-Overall Length(mm) 9390
B-Overall Width(mm) 2800
C-Overall Height(Arm top)(mm) 3040
D-Overall Hight(CAB top)(mm) 3060
E-Loading Weight distance from ground(mm) 1100
F-Minimum Distance (mm) 468
G-End turning radius(mm) 2720
H-Track shoe length on ground(mm) 3445
J-track shoe assy length(mm) 4260
K-track distance(mm) 2180
L-track shoe assy width(mm) 2800
M-track shoe wideth(mm) 600
N-turning platform width(mm) 2700
O-Maximum digginig height(mm) 9275
P-Maximum unLoading Height(mm) 6560
Q-Maximum digging depth(mm) 6515
R-Maxium Vertical digging depth(mm) 5000
S-Maximum digging depth for transverse plane 2.5 m (mm) 6650
T-Maximum diging distance 9865
U-Maximum digging distance at horizontal plane(mm) 9680
V-Minimum Turning Radius(mm) 3630
W-Maximum height at minimum turning radius.(mm) 7670
X-The distance from turning center to back tail end(mm) 2720
Z-Load weight height(mm) 2120
A1-Ground distance(On transportation)(mm) 4840
Bucket dipper distance (mm) 2900
Arm length(mm) 5700
