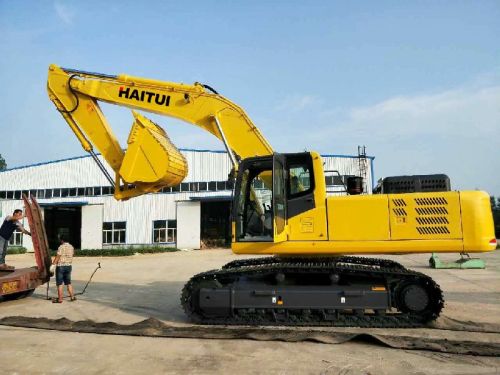

Crawlwer Steel HE360-8 Crawler Excavator, Brand Name : HAITUI

Model HE360.8
Weight 34.1
Bucekt capacity(m3) 1.6
Engine Model CUMMINS 6CTAA8.3
Power(kwrmin) 1982000
Fuel Tank capacity(L) 595
Tracking speed(kmh) 5.23.3
turing speed(rmin) 10.6
Climbing ability(%) 70
bucket digging force(KN) ISO 208
Ground Pressure(KPa) 68.3
Hydrauli Pump Model K3V140DT
Maximum Flow�Lmin) 265*2
Operation Pressure(MPa) 34.3
Oil Tank Capacity(L) 310
A-Overall Length(mm) 11260
B-Overall Width(mm) 2995
C-Overall Height(Arm top)(mm) 3180
D-Overall Hight(CAB top)(mm) 3280
E-Loading Weight distance from ground(mm) 1210
F-Minimum Distance (mm) 498
G-End turning radius(mm) 3600
H-Track shoe length on ground(mm) 3700
J-track shoe assy length(mm) 4622
K-track distance(mm) 2590
L-track shoe assy width(mm) 3190
M-track shoe wideth(mm) 600
N-turning platform width(mm) 2995
O-Maximum digginig height(mm) 10200
P-Maximum unLoading Height(mm) 7135
Q-Maximum digging depth(mm) 7370
R-Maxium Vertical digging depth(mm) 6380
S-Maximum digging depth for transverse plane 2.5 m (mm) 7190
T-Maximum diging distance 11100
U-Maximum digging distance at horizontal plane(mm) 10910
V-Minimum Turning Radius(mm) 4265
W-Maximum height at minimum turning radius.(mm) 8500
X-The distance from turning center to back tail end(mm) 3600
Z-Load weight height(mm) 2265
A1-Ground distance(On transportation)(mm) 5720
Bucket dipper distance (mm) 3185
Arm length(mm) 6470
