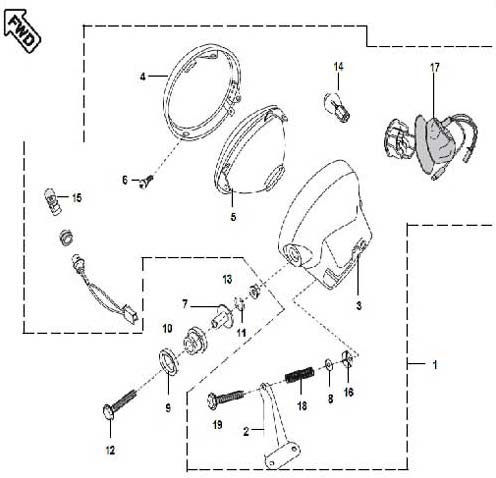

| Fig. No. | Part No. | Description | Qty / Veh. |
|---|---|---|---|
| 1 | DM 2010 22 | Head light assly with lamp | 1 |
| 2 | DD 2010 17 | Bracket head light | 1 |
| 3 | DU 2010 57 | Head Light Housing | 1 |
| 4 | DJ 2010 46 | Head light rim | 1 |
| 5 | DJ 2010 51 | Reflector with lens | 1 |
| 6 | DU 2010 29 | Special screw | 2 |
| 7 | DU 2010 60 | Collar | 2 |
| 8 | DD 2010 47 | Washer | 1 |
| 9 | DD 2010 10 | Damper | 2 |
| 10 | DD 2010 09 | Damper | 2 |
| 11 | 39 1684 12 | Spring washer | 2 |
| 12 | 39 1683 04 | Flange Bolt | 2 |
| 13 | 39 2479 15 | Flange Nut | 1 |
| 14 | DF 2011 64 | Lamp 12 V 35/35 W | 1 |
| 15 | DL 1910 20 | Lamp 12 V 3W | 1 |
| 16 | DD 2010 48 | Nut (Nylon) | 1 |
| 17 | DF 2010 58 | Lamp holder (socket) assly. | 1 |
| 18 | DD 2010 46 | Spring for adjustment | 1 |
| 19 | DD 2010 45 | Screw | 1 |
