Heart Plus ResQ Automated External Defibrillator (AED)

₹ 1.82 Lakh / Piece

MOQ1 Piece(s)
Number Of FlowerNon-rechargeable lithium (LiMn02)
Defibrillator SeriesNT-381.C
Drop Test1.5 meters per IEC 60068-2-32
Mode ConversionAdult/Child toggle button
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of FlowerNon-rechargeable lithium (LiMn02)
Weight2kg (including battery and pads)
Standby Mode Lifeecommended five (5) years @ 25C, 180 shocks @ 25C, 130 shocks @ 0C
Mode ConversionAdult/Child toggle button
Weight260g (±10%)
ECG RecordingLEAD II
Defibrillator SeriesNT-381.C
Water ResistanceIP55 per IEC 60529
TemperatureOperating: 0 C to 40 C; Storage: -20 C to 60 C
Applicable AgesAll ages (12 months & older)
Conductive Element2.1 meters (±1%)
Self-Diagnostics TestPossible
Altitude (operating/storage)0 to 5000 meters
Pads PlacementAnterior-lateral (visual details on pads)
Electrode PadsShelf Life: Two (2) years, for one-time use only
Dimensions2.2cm(H) x 16.4cm(W) x 5.4cm(D)
SealingAirtight
MemoryECG Records 5 sec during analysis only (up to 1000 instances), Ambient Noise: 60 minutes,4 inst of 1
Analysis OverviewPatient evaluated to determine whether ECG rhythm represents shockable or non-shockable state.
Humidity(operating/storage)10% to 95% Relative Humidity, Non-Condensing
CapacityVoltage DC 12V / 4,200mAH
Energy150J (Adult, Impedance 50 Omega), 50J (Pediatric, Impedance 50 Omega)
Shock MethodManual button (flashes when ready)
Conductive GelPE Foam, Hydrogel
Shock Charge Time9 seconds (±10%)
Size125mm x 95mm
WaveformTruncated Exponential Biphasic
Drop Test1.5 meters per IEC 60068-2-32
PartsMicrophone, Status button, Pads port,Shock button, Internal speaker, Power button for adults, Power
Dimensions8.0cm(H) x 22.0cm(W) x 28.2cm(D)

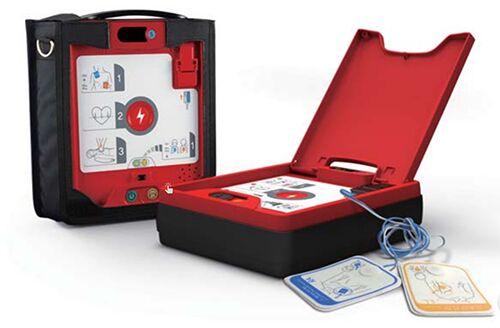

Heart plus resq is a life-saving device that can be used safely and quickly in the case of an emergency.
our technology features accurate analysis to only advise shocks when necessary.
If the electrodes are not attached properly, the electric shock process is halted.
If the electric shock button is not pushed within 20 seconds, battery will discharge.
Inclusion of an overcharge prevention circuit for proper electric shock loads.
Dual electric shock waveform control circuit prevents malfunction of device.
Anyone can use by following voice prompts : voice prompts are simple and easy to follow.
Easy to check the status of device: check the status of device via status indicator, if some problem occurs.
Simple management of device to ensure its readiness: heart plus resq performs a self diagnostics every day to check its vital components. Administrator pre-connects pads and closes the cover after each use.
One pad for both adults and children: save time by using same electrode pads on both adults and infants children.
Automatically analyzing accurate ecg: after attaching the pads to the patient, ecg is analyzed. An electric shock is advised if a shockable rhythm is detected.
