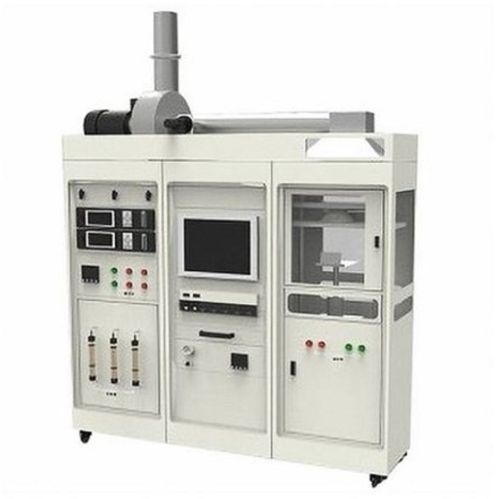

Heat & Smoke Release Testing Machine EN 45545-2 Compliant Kdm Global

Heat & Smoke Release Testing Machine – EN 45545-2 Compliant | KDM GlobalProduct Overview

• Measures heat release rate (HRR) and smoke production rate (SPR) of materials under controlled fire exposure

• Fully compliant with EN 45545-2, especially Annex A & Annex B requirements for railway vehicle materials

• Uses cone calorimetry principle per ISO 5660-1 to simulate real fire scenarios

• Ideal for testing rail interior components like wall panels, seats, cables, flooring, and coatings

Applicable Standards

• EN 45545-2: Fire protection for railway vehicles – HL1, HL2, HL3 performance levels

• ISO 5660-1: Heat release rate (HRR), Total Heat Release (THR), Mass Loss Rate (MLR)

• ISO 5660-2: Smoke production and ignition time under radiant heat

• ASTM E1354: Cone Calorimeter testing for reaction-to-fire of materials

• Optional: ISO 5660 + FTIR integration for toxic gas measurement

Key Features

• High-precision cone heater (up to 100 kW/m²) with temperature uniformity control

• Load cell assembly for mass loss rate (MLR) measurement

• Oxygen consumption calorimetry for calculating HRR and THR

• Optical path with photodetectors for real-time smoke density monitoring

• Integrated spark igniter with safety interlocks and auto shutoff

• Real-time graphing and automated software interface for all parameters

• Optional FTIR smoke toxicity analysis module for advanced testing

• Adjustable sample holder and retainer for both vertical and horizontal orientations

• Enclosed cabinet with exhaust duct, filters, and flow stabilization

• All data logged in compliance with international standards and exportable in multiple formats

Technical Specifications

• Heat flux range: 0 to 100 kW/m² (adjustable)

• Sample size: 100 mm × 100 mm × 50 mm (standard)

• Load cell capacity: 0–5 kg, 0.01 g resolution

• Smoke measurement: Optical density (Ds), Transmittance %

• Data capture: HRR, THR, SPR, MLR, Time to Ignition, Residue

• Control system: PC-based with real-time data visualization

• Output formats: CSV, PDF, graph overlays, multi-parameter charts

Applications

• Fire safety compliance testing of railway interior materials under EN 45545-2 R1–R26

• Heat and smoke release profiling for plastics, textiles, paints, cables, insulations

• Material screening and quality control for metro trains, trams, and locomotives

• Comparative analysis of fire-retardant formulations

• Also suitable for building materials, automotive interiors, and electronics

Industries Served

• Railway OEMs and metro coach manufacturers

• Fire testing laboratories and certifying authorities

• R&D facilities for polymers and thermoplastics

• Electrical, construction, and transport equipment suppliers

• Government-approved compliance agencies

Why Choose KDM Global

• In-house manufacturer of ISO 5660-based cone calorimeters tailored for railway standards

• Modular design for heat release + smoke + toxicity in one system

• Delivered with calibration kit, installation support, and user training

• Software built for multi-standard data acquisition, trending, and report automation

• Export-ready systems compliant with Indian, European, and international test norms

• Backed by long-term maintenance, warranty, and spares availability
