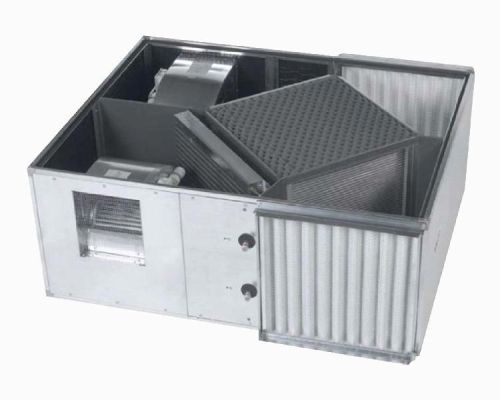

Heat Recovery Unit With Cross Flow Heat Exchanger

The 10MK units are designed to reduce energy consumption in installations where fresh air is introduced into the building. The extract air is used to pre-heat the incoming fresh air and thus allows for considerable energy savings. The heat exchange reclaims up to 50% of the energy contained in the extract air which would be otherwise lost.

All the unit panels are removable for easy inspection and maintenance. The 10MK series are produced in 6 sizes with an airflow range of 500 to 300m3/h.

The basic units are produced in galvanized steel or, on request in pre-plastified steel RAL 9010 (white) colour for units in view within the room. The units panels are internally lined with 10mm thick thermal/acoustic insulation (other thicknesses available on request).

Fan Section

Supply and extract fans are DIDW, forward curved, direct driver single phase with 2 pole motors ( for units 10MK1 and 10MK2) or with 4 pole motors for the rest of the range.

Heat Exchanger

• Static type cross flow heat exchanger. Aluminium plates sealed in an aluminium frame.
• Steel condensate pan with drain connection.

Filters

Easily withdrawable polyester filters 86.5 efficiency Am and G3 according to EN 779.

Our company is prominent exporters of Heat Recovery Units from UAE. Heat recovery units that offer optimum ventilation solutions for houses, business premises, offices, hotel industry, healthcare industry, educational institutions or public buildings. Their high efficiency heat exchangers allow big energetic saves. Our offered Heat Exchangers are designed to ensure maximum equipment performance and optimum air quality. Our offered Heat recovery units are equipped with cross flow heat exchangers that are designed with perfection by our experts with stringent quality control procedures. The units are designed to reduce energy consumption in installations where fresh air is introduced into the building. The extract air is used to pre-heat the incoming fresh air and thus allows for considerable energy savings. The heat exchange reclaims up to 50% of the energy contained in the extract air, which would be otherwise lost. All the unit panels are removable for easy inspection and maintenance. As a noted Heat Recovery Units Supplier in UAE, we ensure that only finest quality products are delivered at competitive prices to our esteemed patrons.
