Heat Seal Tester

We are offering heat seal tester.
Hot tack measures the strength of heat seals formed between thermoplastic surfaces of flexible webs, immediately after the seal has been made and before it cools to room temperature. This heat seal property is important since this situation occurs on vertical form-fill-seal packaging.

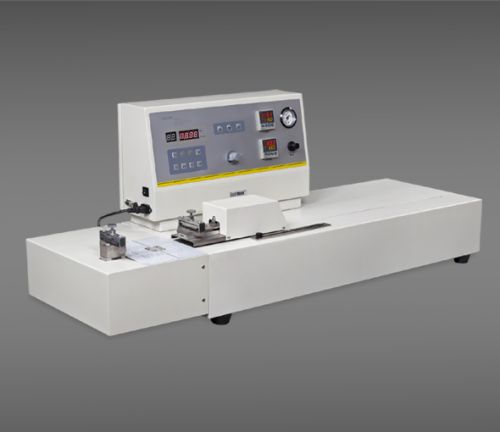

htt-l1 hot tack tester for plastic pouches is applicable in hot tack and heat seal performance tests for plastic film, laminated film and other packaging film. Meanwhile, it is applicable in peel, shear, tension and other test items for adhesive, adhesive tape, laminated film, plastic film, paper and other flexible materials.
features of htt-l1 hot tack tester:
1. Digital p.i.d. Temperature control system
2. 4 force testing ranges and 6 testing speeds
3. 4 testing functions including hot tack, heat seal, peeling and tensile resistance are available in this instrument
4. Automatic zeroing, error alert, overload protection and stoke protection guarantee the safety operation
technical specification of labthink hot tack tester:
1. Sealing temperature: room temperature ~ 250°c
3. Temperature accuracy: ±0.2°c
4. Dwell time (heat seal): 0.1~999.9 s
5. Dwell time (hot tack): 0.1~999.9 s
6. Sealing pressure: 0.05 mpa~0.7mpa
7. Sealing area: 100mm x 5mm
8. Sealing jaw:single sealing or double sealing (customized)
9. Pressure of gas supply: 0.5 mpa ~ 0.7 mpa (not in supply scope)
10. Port size: φ4 mm pu tubing
11. Instrument size: 1170 mm (l) x 360 mm (w) x 460 mm (h)
12. Power supply: ac 220v 50hz
13. Net weight: 45 kg
14. Test range: 0 ~ 200n (30n, 50n or 100n is optional)
15. Accuracy: 1% of reading value
16. Resolution: 0.01 n
17. Load speed: 100 150 200 300 500 and hot tack (mmmin)
18. Specimen width: 15 mm, 25 mm or 25.4 mm (optional and customized)
19. Stroke: 500 mm
htt-l1 hot tack tester conforms to astm f1921, astm f2029.
