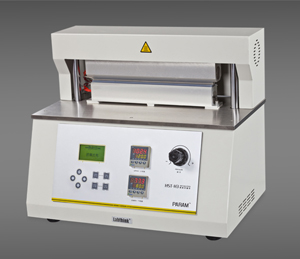

Heat Seal Tester - (hst-h3)

Characteristics
micro-computer control; lcd display;
manu interface, pvc operation board;
p.i.d digital temperature control system:
underlying double cylinder simultaneous loop;
two test start mode of manual and foot pedal;
independent temperature control of the upper and lower heat seal head;
various heat seal surfaces made to order;
encapsulate even-temperature heating pipe by aluminum;
rapid insertion and separation heating pipe plug;
anti-scald design;
rs232 port;
technical indexes
seal temperature: room temperature~300℃
temperature control accuracy: ±0.2℃
dwell time: 0.1s~999.9s
dwell pressure: 0.05mpa~0.7mpa
seal surface: 330 mm x 10 mm (also customize)
heat type: single heat surface or double heat surface
gas source pressure: 0.05mpa~0.7mpa (users prepare gas source themselves)
gas source inlet: ф6mm polyurethane pipe
dimensions: 536mm(l) x 335mm(b) x 413mm(h)
power: ac 220v 50hz
net weight: 43kg
standards
astm f2029, qbt 2358(zby 28004), ybb 00122003 .
