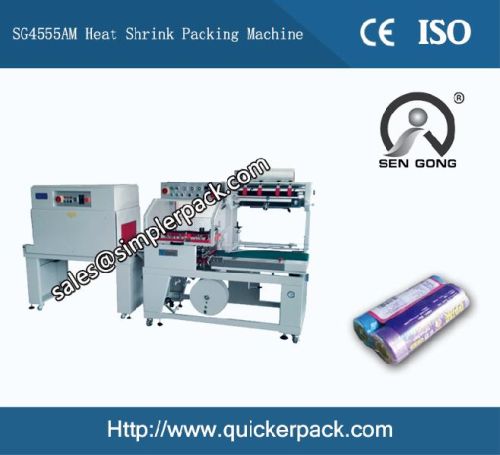

Electric Heat Shrink Packing Machine, Brand Name : Sengong

Application:
it is used to pack kinds of small components, appliances and objects with pof, pp or pvc film etc, such as electrical products, hardware, software, wallpaper, cosmetics, food, printing products, medications, floor boards, ceramics etc.
Features:
1. All switches and units are original from famous manufacturers, ensuring the stable performances of machine. (e.g. Mitsubishi plc ,omron relay etc.)
2. Free to adjust the speed of conveyor belt by electronic speed controller.
3. The surface of machine would not be over heat because it is equipped with double insulated device.
4. Adopting imported insulated curtain to resist high temperature so as to reduce energy wasting.
5. It adopts stainless steel heater to make it heat up quickly, and equips with large power blowing motor to keep big even flowing.
6. Conveying speed or tunnel's temperature can be freely adjusted according to the size of products and output. convey chain is made of solid poles covered by silica gel tube, to bear such objects in heavy and would not be distorted.
technical data:
machine type: heat shrink packing machine series
machine model: sg4555am
machine name: heat shrink packing machine
machine dimension: 1850*990*1600mm(l*w*h)
machine carton size: 1960*1100*1800mm(l*w*h)
packaging range: (40-500)*(60-350)*(5-140)mm
sealing knife size: 550*450mm(l*w)
machine nwgw: 450530kgs
power supply: 1ph, 220v, 2kw
air supply: 5kgscm2
packing capacity: 10～30 packsmin
packaging film: pof
machine cbm: 3.88 m3
