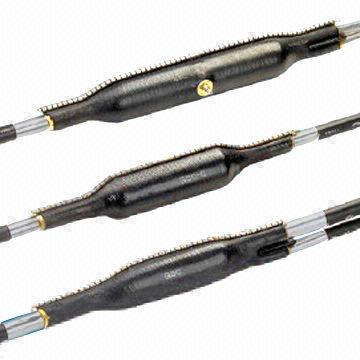

Heat Shrinkable Tubes 2

Wrap-around fiber reinforced heat shrinkable sleeves for pressurized cable with good sealing
• equivalent to raychem xaga500550
• good pressure retention
• creep-resistant
• high performance
• good mechanical strength and sealing
• suitable for pressurized cable
• general:
o rsbj heat shrink cable jointing kits for telecom cables are fiber reinforced heat shrink closures designed for the protection of cable joints for the non-pressurized telecom cables network
o the heat shrink cable joint mainly consists of a heat shrink, reinforced and wraparound sleeve and a wrap-around metal canistercardboard liner
o rsbj 500 heat shrinkable joint closures with hard paper liner is used on cables with the capacity up to 800 pairs. Branched closures can also be installed (max 3 cables from each side)
o rsbj 550 heat shrinkable joint closures with aluminum canister can be installed on cables with a capacity of up to 3,600 pairs
o rsbjf is designed for branch splice application
• the heat shrink sleeve is a reinforced composite laminate
• the heat shrink sleeve is internally coated with a flexible heat adhesive which will melt and adhere to the cable to form an air and water tight seal
• the heat shrink cable jointing kits can be used on polyethylene, lead, steel and aluminum jacketed cables for straight cable joints and branch cable joints up to three telecom cables out on each side
• the kit also contains a range of fully interchangeable air fittings which can be incorporated in the closure
• features:
o composite material of the heat shrink sleeve provides high mechanical strength
o heat shrink cable jointing kits have high tightness under high and low temperature
o full range heat shrink cable jointing kits to suit all cable sizes
o suitable for use with all connector systems
o easy to install
