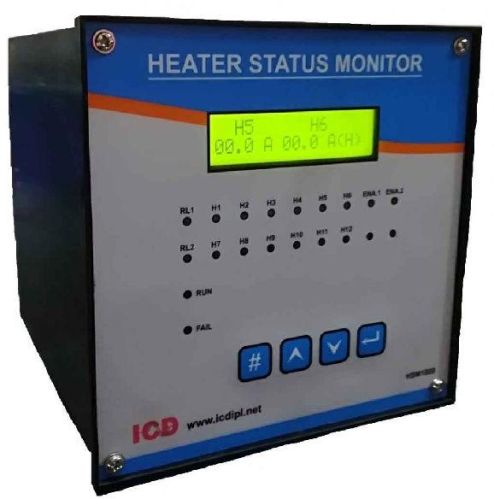

Heater System Burnout Detector

ICD offers heater system monitoring and burnout detection. This product is designed to monitor status of the heater system with 3 phase star or delta connected loads. This instrument measure and monitors voltage, current, power and energy through external CT’s and voltage detection; it can operate with 3 CT’s or 2 CT’s with true RMS measurement, CT ratio is settable in the meter itself. Under current setting will be given to study heater status and it will announce the heater burnout detection. This unit also shows the thyristor short circuit failure or open circuit failure.

This instrument displays voltage, current, power and energy by digital measurement and finds the heater burnout status and provide alarm through an external relay output.

Main Functions

• Heater burnout alarm
• Heater layer short circuit alarm on crossing limit
• Power device short circuit detect
• Power device open circuit detect
• Display of all electrical quantities
• Heater useful run hour

Features

• Ensure best quality product
• Avoid scrap and raw material wastage
• Automatic human intervention
• Monitoring unbalance heating
• Monitoring a group of heater together in an enclosure
• Contribute preventive maintenance
