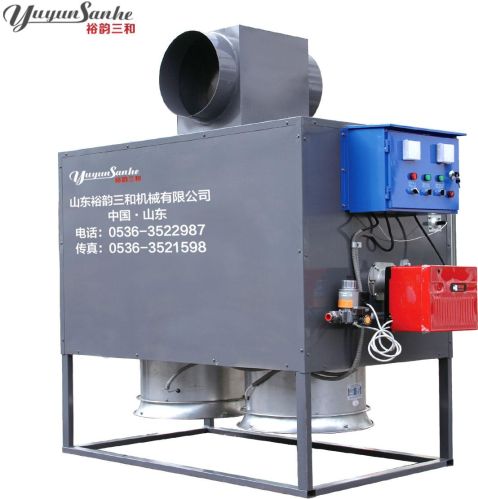

Heating Machine

Features:
1）adopt the latest international technology, unique large volume design in combustion chamber.
2）equipped with the world brand riello burner ensure full combustion, higher efficiency and lower failure rate.
3）adopt the advanced corrugated furnace design which increasing the heating area, resist its expanding after heated.4）thermal conversion reach as high as 99.9%，stable air supply.
5）automatic control system operate easily, warming quickly. after setting, burner would automatically start on, fire, supply air and stop for keeping steady temperature.6）special insulation design which minimize heat loss. 7）all the technical index meet the national environmental protection I standard.
Technical parameter:
technical parameters 50000kcal 100000kcal 200000kcal
heat output power kcalh 50000 kcalh 100000 kcalh 200000 kcalh
heat efficiency ≥% ≥90% ≥90% ≥90%
fuel natgas natgas natgas
consumption kgh 3-6 nm³h 9-12 nm³h 18-24 nm³h
way of control auto auto auto
air flow m³h 8700m³h 14000 m³h 17400 m³h
temperature rise ℃ 80-120 ℃ 80-120 ℃ 80-120 ℃
power source vhz 380v50hz 380v50hz 380v50hz
electric power kw 0.6kw 0.7kw 1.2kw
diameter of air outlet mm 400mm 400mm 400mm
weight kg 400kg 600kg 700kg
dimension
length×width×height mm 1400×850×1370 1600×900×1400 1700×1000×1500
material of frame galvanized +spray paint galvanized +spray paint galvanized +spray paint
quality guarantee period one year warranty lifelong service one year warranty lifelong service one year warranty lifelong service
