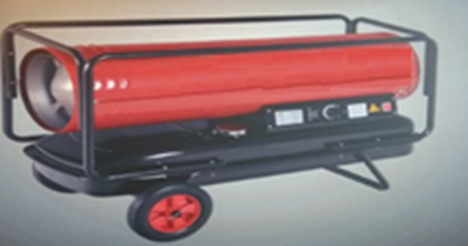

Heating System

Listing ID #6499753

Get Latest Price

MOQ 1 Piece
Electrical Requirements115V/Single Phase/60Hz or 220V/Single Phase/50Hz
Brooders Gap Required15Ft
Weight2.5 Kgs.
Operating Gas Pressure3-6 Kgs/Sq.Cm. (43-86 Lbs./Sq.inch)
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Dimension 600mm Dia Canopy / 125mm Height
Brooding Capacity 1000-.1200 Commercial Birds
Suggestive Placement 4ft. from the Ground Level
Air Delivery Heated 1,173 CFM
Supply Gas Pressure 11.8 Min. – 14 max. (LP) 4.9 min. – 14 max. (Natural Gas)
Fresh Air Requirement for recirculation 900 CFM
Motor Currents 4.7/2.5 Amps
Motor 1/3 HP
Brooders Gap Required 15Ft
Gas Consumption Min. 200 G/Hr / Max.400 G/Hr
Calorific Value Min. 2280 KCal./Hr. / Max. 4560 KCal./Hr
Temperature Range 30-30 Deg C@225 Sq.Ft.Area
Shipping Weight 120 Ibs
Operating Gas Pressure 3-6 Kgs/Sq.Cm. (43-86 Lbs./Sq.inch)
Brooding Area Converage 225Sq.Ft.@4′ Height
LP Gas 01-5430 (C225LP)
Dimensions Length x Width x Height 27x20x28 Inch
BTU/HR 225,000
Electrical Requirements 115V/Single Phase/60Hz or 220V/Single Phase/50Hz
Natural Gas 01-5434 (C225NG)
Weight 2.5 Kgs.
Fuel LP Gas

A unique heating system to heat complete / part of a poultry house. Suitable for cages as well as for floor system.
It is designed to work automatically with the help of Control Panel. It ignites & operate on the basis of required temperature suitable for the b i r d s. Ignition takes place automatically only when gas supply is made, in absence of gas supply the system switches off automatically. The system saves gas and maintains uniform temperature; one space heater is suitable for 2500 to 3000 sq.ft. Depending on the atmospheric condition.
Salient Features :

The first indigenous Gas Brooders manufactured in India
Economical in comparison with conventional brooding system
Affordable price to even small farmers
Can be installed & operated easily by any average operator
All time uniform temperature
Easy maintenance
SS washable filter provided for better efficiency
One year warranty from the date of purchase
Spares easily available on order
Two brooders can be used by the single gas cylinder
