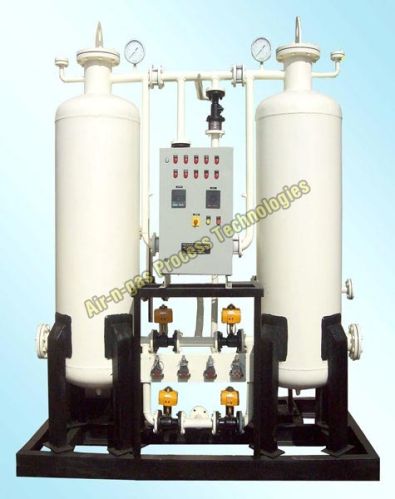

Heatless Air Dryer

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Avail from us, high performing Heatless Air Dryer, which has two desiccant towers. These two towers provide drying and regeneration respectively. These Heatless Air Dryers are available in various specifications to meet the varied requirements of the clients. Highlighting Features Simple operation Easy to maintain Microprocessor based Controller with Purge Saver No need of heater or cooler Atmospheric dew point of (-) 40 to (-) 60 Deg C can be easily achieved. Simple operation

View More Details

Send Enquiry

Technical Specifications

Model No	Capacity		Pipe Line size mm	Approx. Space Requirement (mm)
Model No	M3 / HR	CFM	Pipe Line size mm	Length mm	Width mm	Height mm
ANGHL - 10	15	10	15 NB	600	600	750
ANGHL - 20	35	20	15 NB	600	600	1000
ANGHL - 30	50	30	15 NB	600	600	1200
ANGHL - 50	85	50	25 NB	700	700	1800
ANGHL - 100	170	100	25 NB	800	800	1800
ANGHL - 150	250	150	40 NB	800	800	2200
ANGHL - 200	350	200	40 NB	1000	1000	2200
ANGHL - 500	850	500	50 NB	1400	1400	2400
ANGHL - 1000	1700	1000	80 NB	1600	1600	2600
ANGHL - 1500	2550	1500	100 NB	2000	2000	3000
ANGHL - 2000	3400	2000	100 NB	2000	2000	3000
ANGHL - 2500	4250	2500	100 NB	2000	2000	3000
ANGHL - 3000	5100	3000	125 NB	2000	2000	3000
ANGHL - 3500	5950	3500	150 NB	2000	2000	3000
ANGHL - 4000	6800	4000	150 NB	2000	2000	3000
