Mellcon Engineers are the manufacturers of complete range of Heatless Compressed Air Dryer system (drier) and gas dryer system,These Compressed gas and air dryers (driers) find use in majority of Industrial compressed air system and applications. These air and gas dryer (drier) are also offered for High Pressure gas and air drying system and applications. Following is a brief description of the working of these compressed air dryer and gas dryer systems.

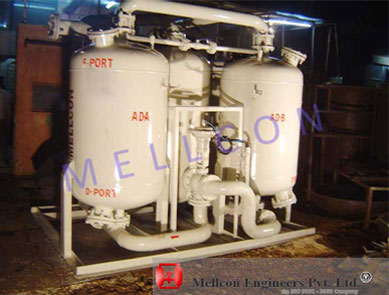

Heatless compressed air dryer (drier) is the simplest form of dessicant type gas or air dryer (drier) for achieving a dew point of -40°C for compressed air systems and other gas and air dryer (drier) applications . Process- Wet incoming Compressed air after passing through prefilter passes through the slide piston valve assembly and is directed towards chamber I where the compressed air passes upward through the desiccant bed (Activated Alumina or Molecular Sieves ). Compressed Air drying takes place by adsorption. Dry Compressed air from chamber I then passes through the Check valve assembly and then through the after-filter to the application or work area.

While Compressed air is drying in chamber I the dessiccant in chamber II where the desiccant has been wetted in the previous cycle is being simultaneously regenerated.
