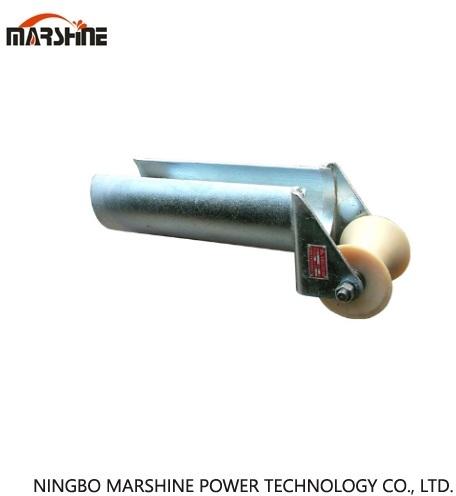

Heavy Duty Bell Mouth With Roller

Heavy duty bell mouth with roller available to suit conduit entries and or exits from 80mm through to 200mm these splitlock roller guides are ideal for heavier duty jobs when your cables are heavy/bulky etc. The full bearing roller makes it easier going for entry to the conduit as well as protect the cable sheath from the conduit opening. When inserted into the conduit opening you adjust the expansion screw to the desired tension inside the conduit. This will hold the split lock roller guide firmly in place whilst the cable is in motion into or out of the conduit. The roller is situated offset to the conduit guide which provides you with different angle options. B series cable entrance protection roller our b series cable protection roller hassingle roller, which can be placed at the orifice from arbitrary angle based onthe traction requirement. Additionally, this nylon roller is lockable. Detailed data item number model tube diameter(mm) weight(kg) 21241 sh80b 80 4.3 21242 sh90b 90 4.9 21243 sh100b 100 5.2 21244 sh130b 130 6.3 21245 sh150b 150 7.6 d series cable entrance protection roller thisd series cable protection roller possesses one nylon roller. It is unique inits lengthened and fixed type locating mechanism. Technical specifications item number model tube diameter(mm) weight(kg) 21271 sh80da 80 4.3 21272 sh90da 90 4.6 21273 sh100da 100 5.0 21274 sh130da 130 6.9 21275 sh150da 150 9.0 21276 sh200da 200 12.8   we have b, c,c1 and d series cable entrance protection.
