Heavy Duty Conventional Vertical Lathe VTL Machine

Heavy duty Conventional Vertical Lathe VTL machine tool is suitable for rough and and fine machining of ferrous metal, nonferrous metal and part nonmetal with high speed steel and hard alloy tool, on the machine, inner and outer cylinder, tapering, surfacing grooving and boring can be carried out.
Technical specification of heavy duty Conventional Vertical Lathe  VTL machine C5250
1 Maximum turning diameter 5000 mm
2 Maximum Height of workpiece 2000250030003150 36504150mm
3 Maximum Weight of workpiece 325080 t
4 Table diameter 3600 4200 4500 mm
5 Speed range of table 1.3~42rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 1250 mm
8 Horizontal travel of tool post -20~2630 mm
9 Rotation angle of tool post ±30°
10 Power of main motor 7598 kw
11 Overall dimensions(L×W×H) 8610×6000×5600 mm
8610×6000×6100 mm
8610×6000×6600 mm
10930×6000×6800mm
10930×6000×7300mm
10930×6000×7800mm

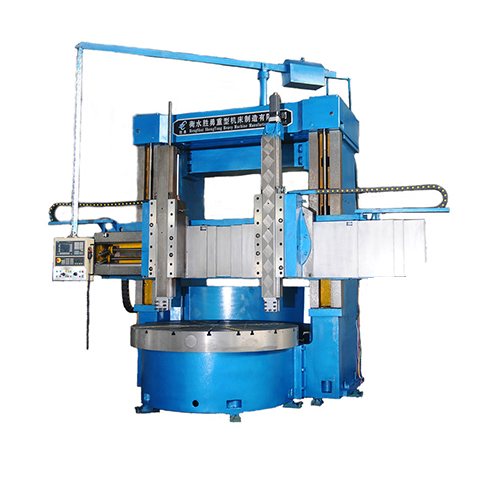

Photo of Heavy duty Conventional Vertical Lathe VTL machine
