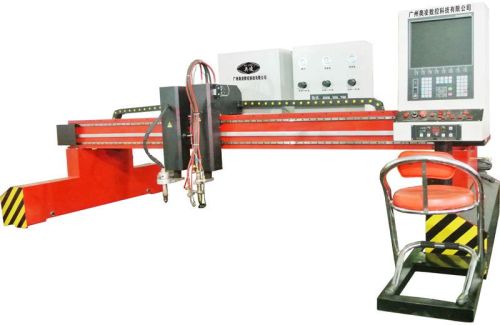

Heavy Duty Gantry CNC Cutting Machine

We are offering heavy duty gantry cnc cutting machine.
Features
this cutter adopts gantry structure, its cross beam have many specifications, both of them
adopt dual drive and lineal guide. Torch quantity is optional according to users demands,
also can be configured as abnormity cutting and strip cutting.
1.cnc plasma and flame cutting machine is a comprehensive cnc cutter with one plasma
cutting torch and one flame cutting torch.
2.any torch of the machine can be customized according to the customers demands.
3.this machine has oxy fuel cutter , stable system, easy to use,high efficiency.
rack distance is 4000mm,double drive and lineal guide.
application
it can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum,
copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries
such as machinery, automobile,shipbuilding, petro-chemical, war industry, metallurgy,
aerospace, boiler and pressure vessel, locomotive etc.
1.sino-german joint venture system: ruiduncnc large cnc cutting control system
2.bilateral driver
3.japan original panasonic servo drive system
4.germany planetary gear reducer
5.taiwan linear guides
6.flame cutting torch system (with automatic ignition device)
7.plasma arc voltage automatic height adjustment device
8.flame capacitor automatic height adjustment device
9.rail grinding,guide rail
10.horizontal stepover:4.0m ;vertical length:8.0m
11.the effective cutting width:3.2m the effective cutting length: 6m.
